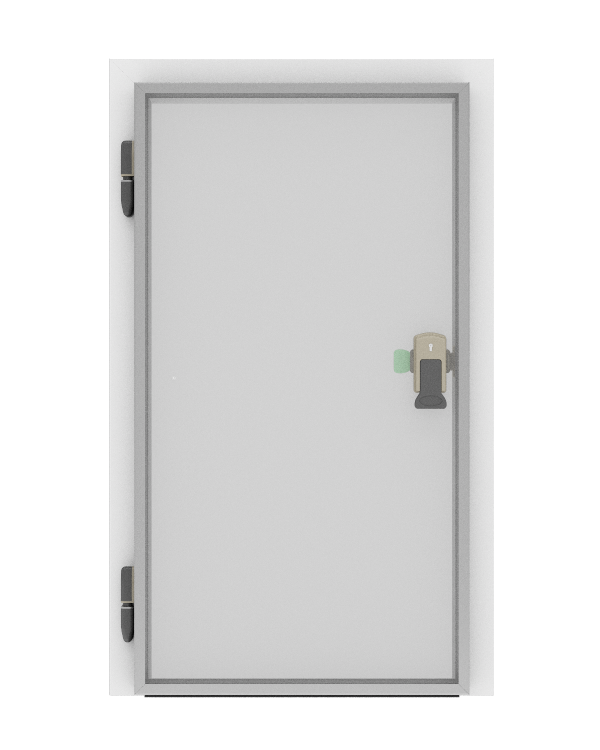

Kit for hinged cold room doors

ALL COMPONENTS

DESCRIPTION

Kit for the hinged doors of cold rooms for positive and negative temperature with aluminium door leaf profile

SUITABLE FOR

Type For overlapping doors
Door weight 200kg
Cold room temperature -20°/40° C
Door height 500/6000 mm
Door width 500/2000 mm
Door thickness 60/200 mm
Opening direction RH, LH
Fastener with key Yes, No

Components for the hinged doors of cold rooms

AVAILABLE OPTIONS 1 of 6

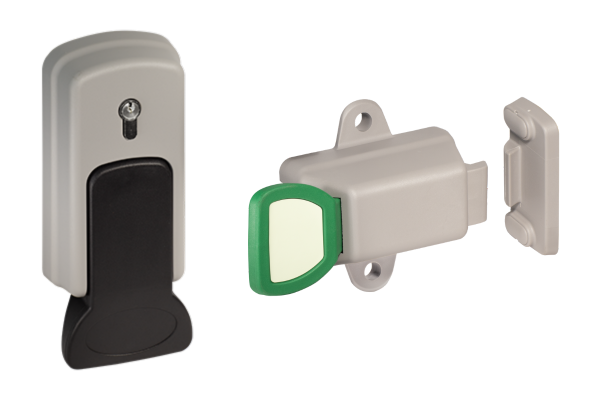

Product number IC10087

Complete external and internal handle with lock, emergency internal push and striker

Additional features

Vertical handle

CE EN 179: 2008

1 locking point

With key

Complete with assembly kit

Self-engaging

Reversible RH/LH

AVAILABLE OPTIONS 2 of 6

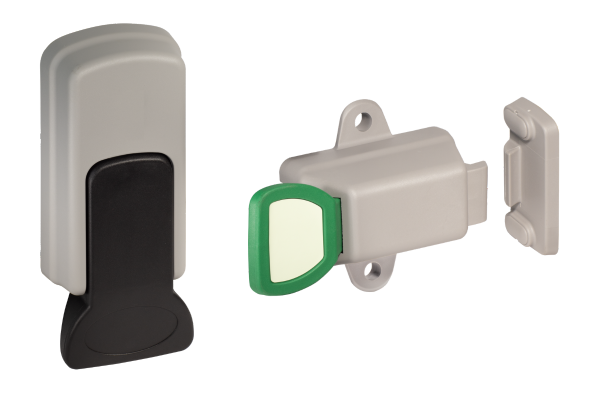

Product number IC10086

Complete external and internal handle without lock, emergency internal push and striker

Additional features

Vertical handle

CE EN 179: 2008

1 locking point

Without key

Complete with assembly kit

Self-engaging

Reversible RH/LH

AVAILABLE OPTIONS 3 of 6

Product number IC10107

Complete external and internal handle with lock, emergency internal push and striker

Additional features

Horizontal handle

CE EN 179: 2008

1 locking point

With key

Complete with assembly kit

Self-engaging

Reversible RH/LH

AVAILABLE OPTIONS 4 of 6

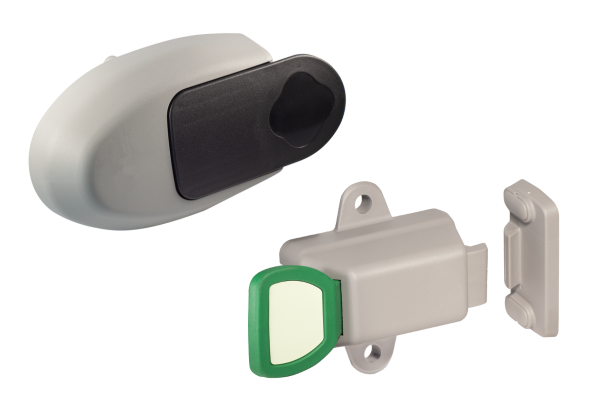

Product number IC10106

Complete external and internal handle without lock, emergency internal push and striker

Additional features

Horizontal handle

CE EN 179: 2008

1 locking point

Without key

Complete with assembly kit

Self-engaging

Reversible RH/LH

AVAILABLE OPTIONS 5 of 6

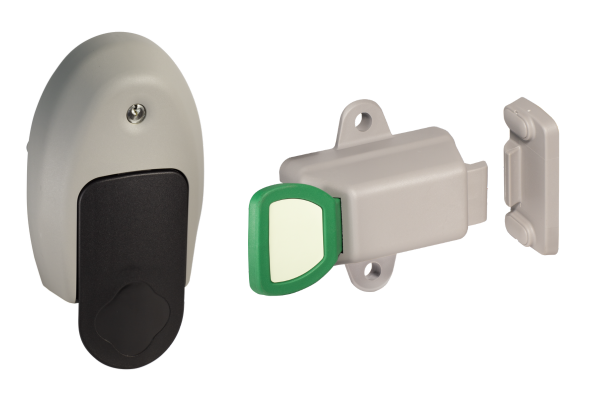

Product number IC10109

Complete external and internal handle with lock, emergency internal push and striker

Additional features

Vertical handle

CE EN 179: 2008

1 locking point

With key

Complete with assembly kit

Self-engaging

Reversible RH/LH

AVAILABLE OPTIONS 6 of 6

Product number IC10110

Complete external and internal handle without lock, emergency internal push and striker

Additional features

Vertical handle

CE EN 179: 2008

1 locking point

Without key

Complete with assembly kit

Self-engaging

Reversible RH/LH

AVAILABLE OPTIONS 1 of 8

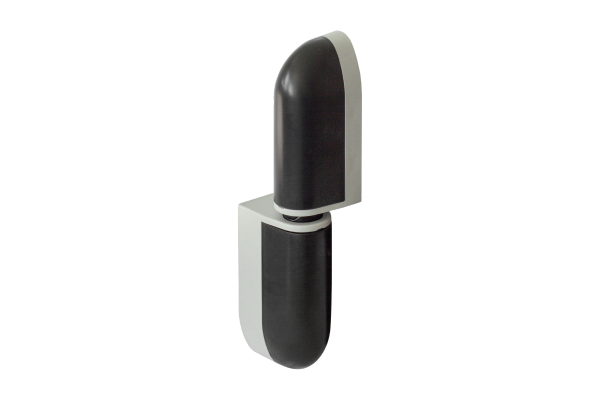

Product number IC10102

Double-jointed hinge with ramp

Additional features

Made of reinforced plastic material

High resistance to low temperatures

High resistance to corrosion

Axis height: 45 mm

Horizontally and vertically adjustable

Stackable thicknesses available

Reversible RH/LH

AVAILABLE OPTIONS 2 of 8

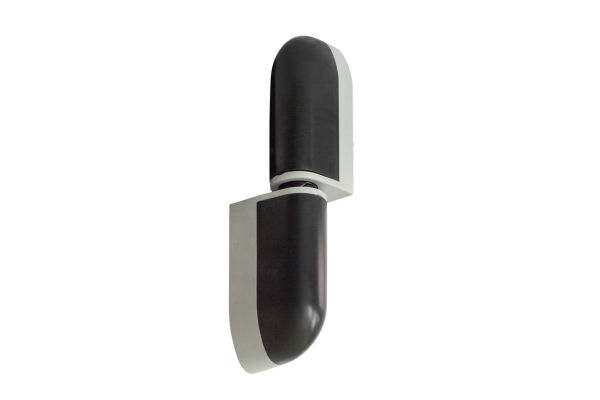

Product number IC10103

Double-jointed hinge with ramp

Additional features

Made of reinforced plastic material

High resistance to low temperatures

High resistance to corrosion

Axis height: 55 mm

Horizontally and vertically adjustable

Stackable thicknesses available

Reversible RH/LH

AVAILABLE OPTIONS 3 of 8

Product number IC10114

Hinge with reversible ramp

Additional features

High resistance to low temperatures

High resistance to corrosion

Axis height: 62 mm

Base: 18 mm

Available colours: standard grey and black

Reversible RH/LH

AVAILABLE OPTIONS 4 of 8

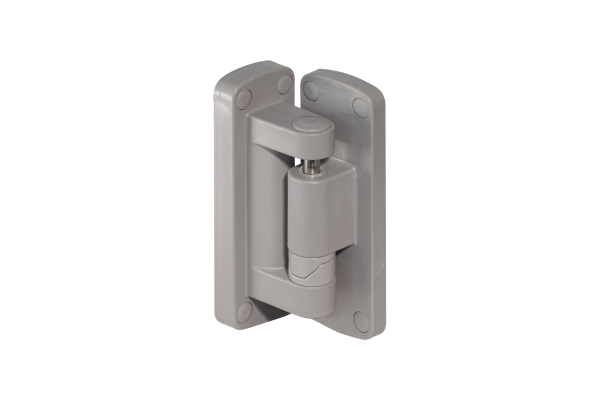

Product number IC10115

Hinge with reversible ramp

Additional features

High resistance to low temperatures

High resistance to corrosion

Axis height: 42 mm

Base: 12 mm

Available colours: standard grey and black

Reversible RH/LH

AVAILABLE OPTIONS 5 of 8

Product number IC10116

Hinge with reversible ramp

Additional features

High resistance to low temperatures

High resistance to corrosion

Axis height: 62 mm

Base: 25 mm

Available colours: standard grey and black

Reversible RH/LH

AVAILABLE OPTIONS 6 of 8

Product number IC10111

Thicknesses for hinges from 5 mm

Additional features

For hinges h: 45 mm and h: 55 mm

Colour grey

AVAILABLE OPTIONS 7 of 8

Product number IC10112

Thicknesses for hinges from 10 mm

Additional features

For hinges h: 45 mm and h: 55 mm

Colour grey

AVAILABLE OPTIONS 8 of 8

Product number IC10113

Thicknesses for hinges from 20 mm

Additional features

For hinges h: 45 mm and h: 55 mm

Colour grey

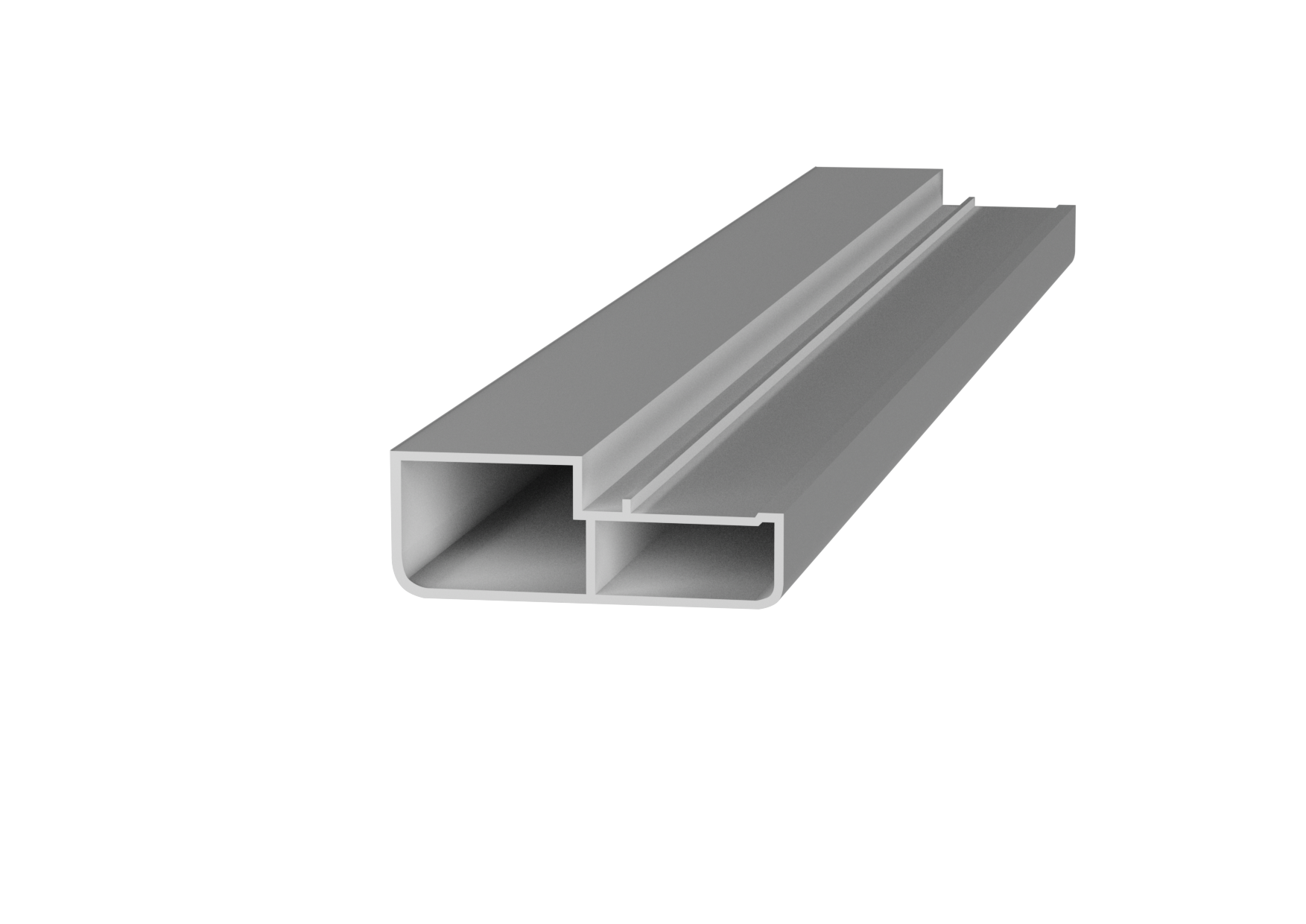

AVAILABLE OPTIONS 1 of 9

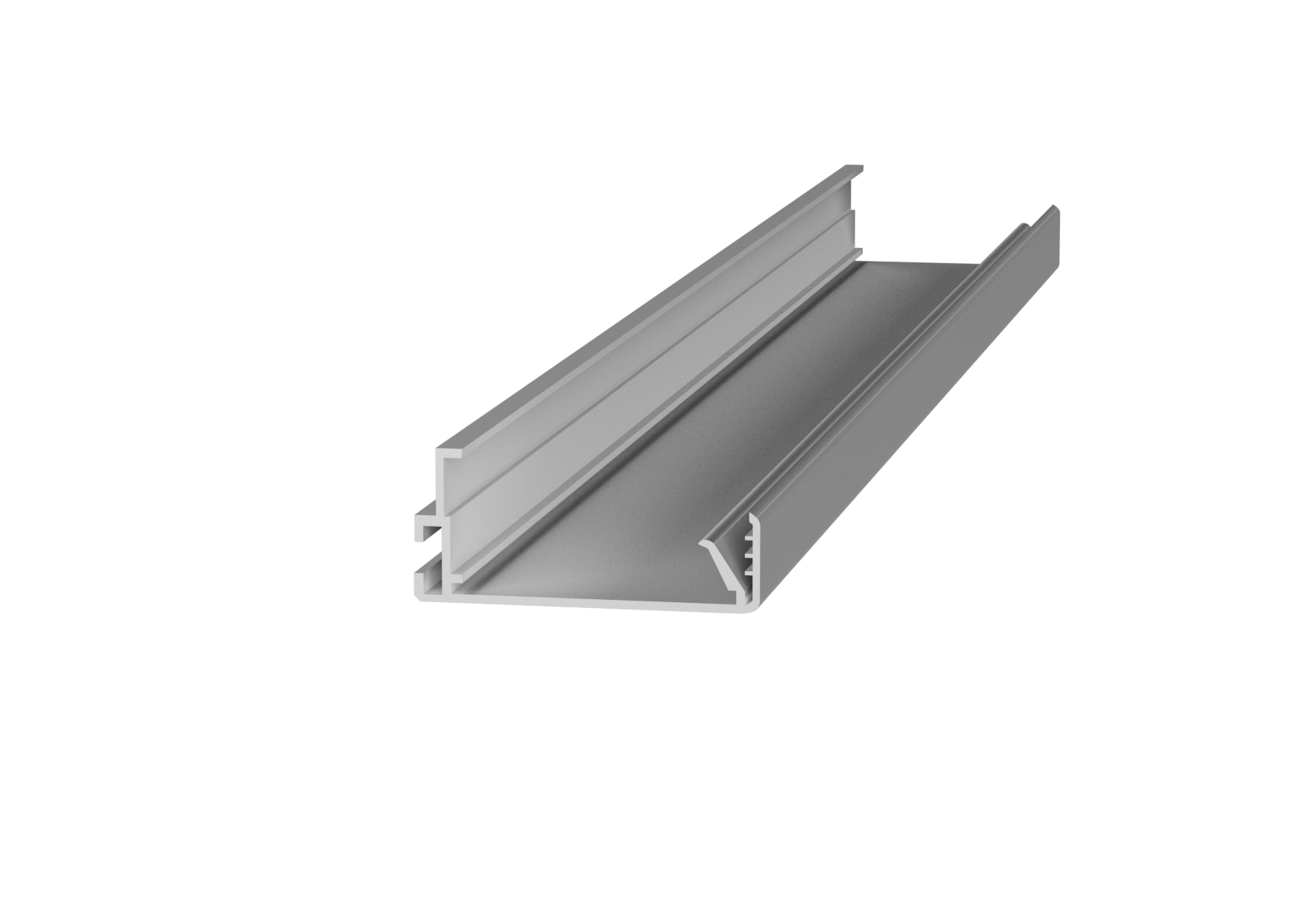

Product number IC10150

68 mm aluminium door leaf profile for foamed door leafs

Additional features

Anodised aluminium (Alloy 6060)

Length of bars: 6 m

AVAILABLE OPTIONS 2 of 9

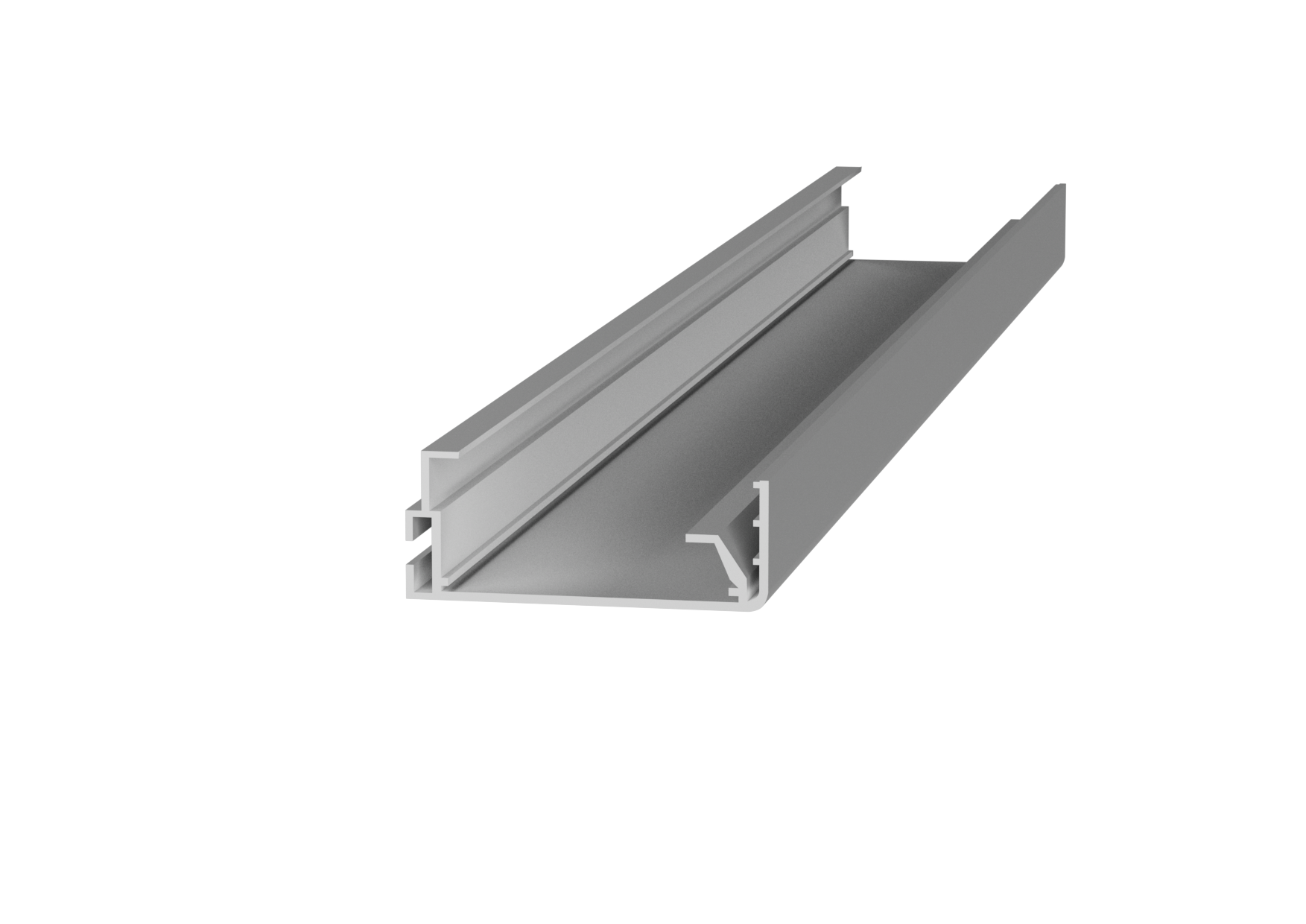

Product number IC10151

92 mm aluminium door leaf profile for foamed door leafs

Additional features

Anodised aluminium (Alloy 6060)

Length of bars: 6 m

AVAILABLE OPTIONS 3 of 9

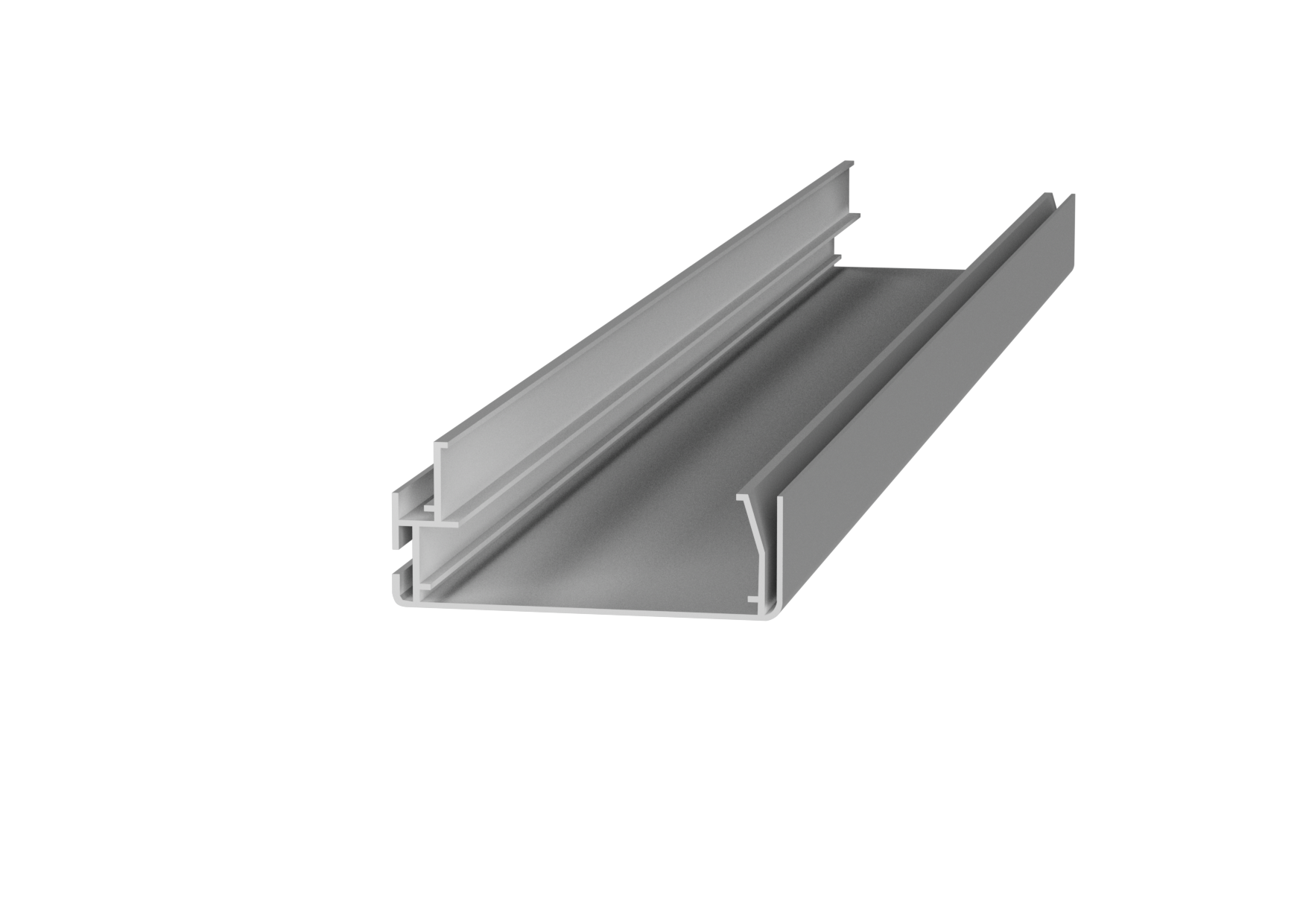

Product number IC10152

121 mm aluminium door leaf profile for foamed door leafs

Additional features

Anodised aluminium (Alloy 6060)

Length of bars: 6 m

AVAILABLE OPTIONS 4 of 9

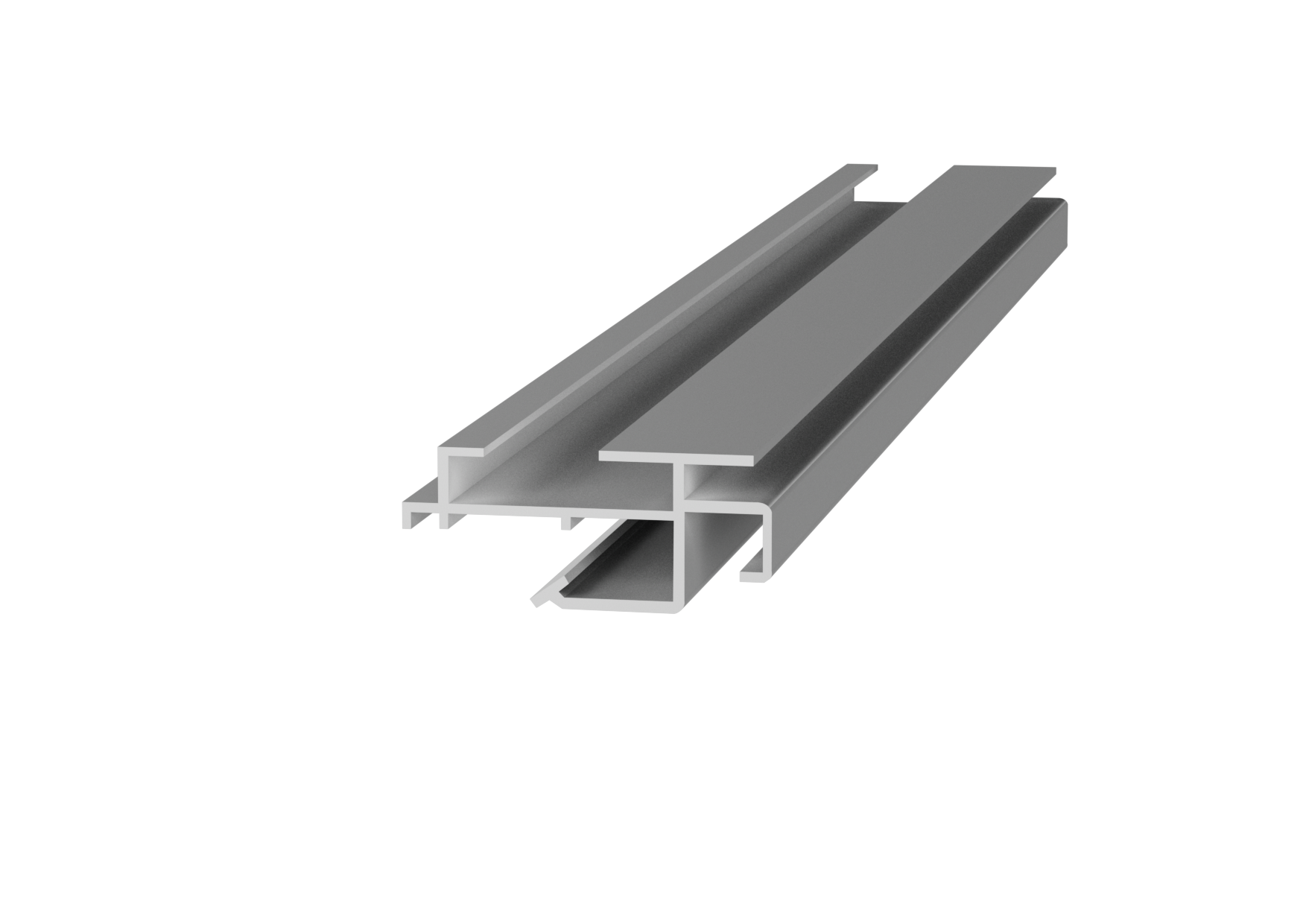

Product number IC10168

Additional seal PVC door profile (grey)

Additional features

5800 mm or 6000 mm bars

AVAILABLE OPTIONS 5 of 9

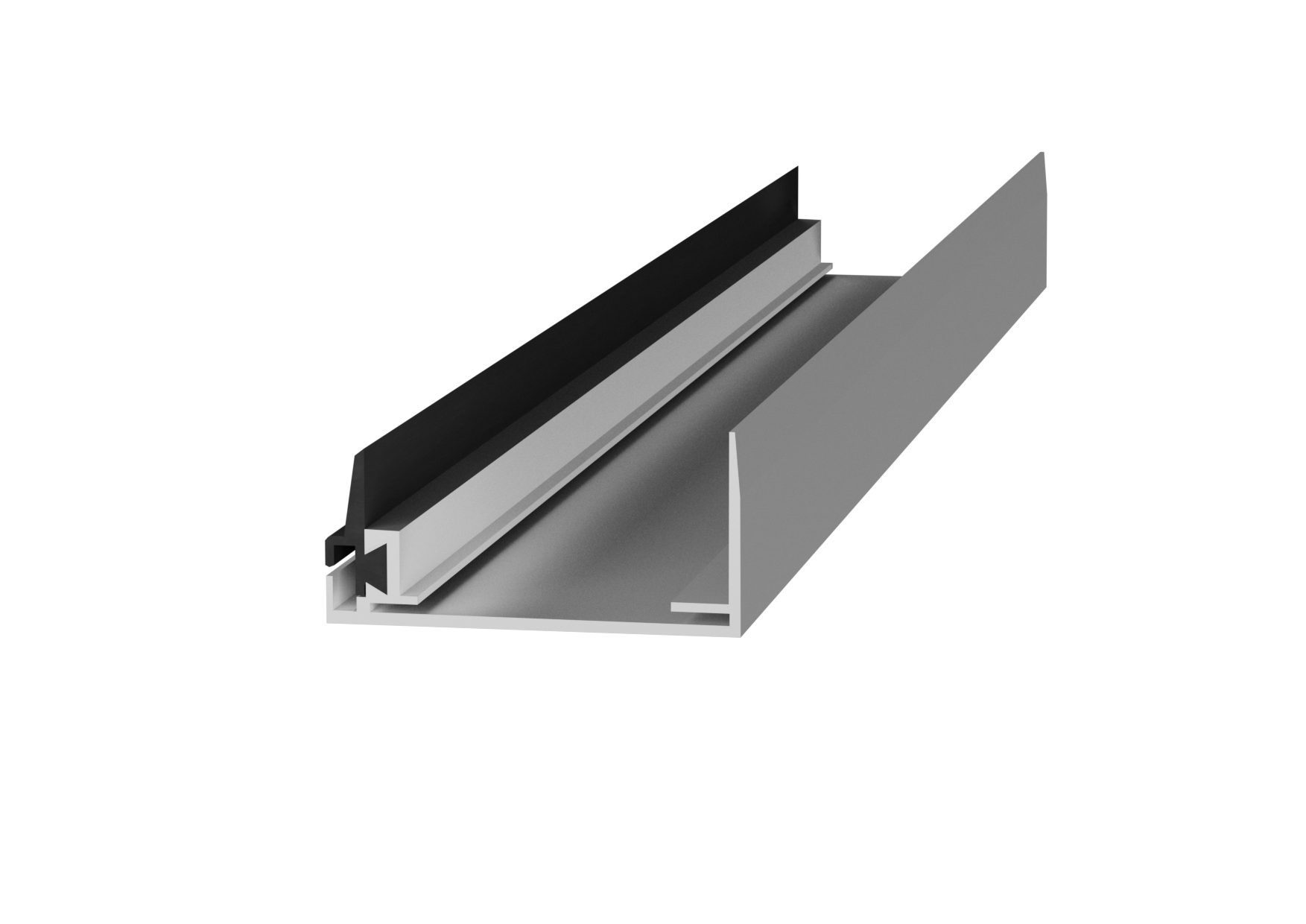

Product number IC10148

Aluminium door leaf profile for panel doors 60 mm thick

Additional features

Anodised aluminium (Alloy 6060)

Length of bars: 5.8 m

To be combined with PVC profile IC10164 for thermal bridge break

AVAILABLE OPTIONS 6 of 9

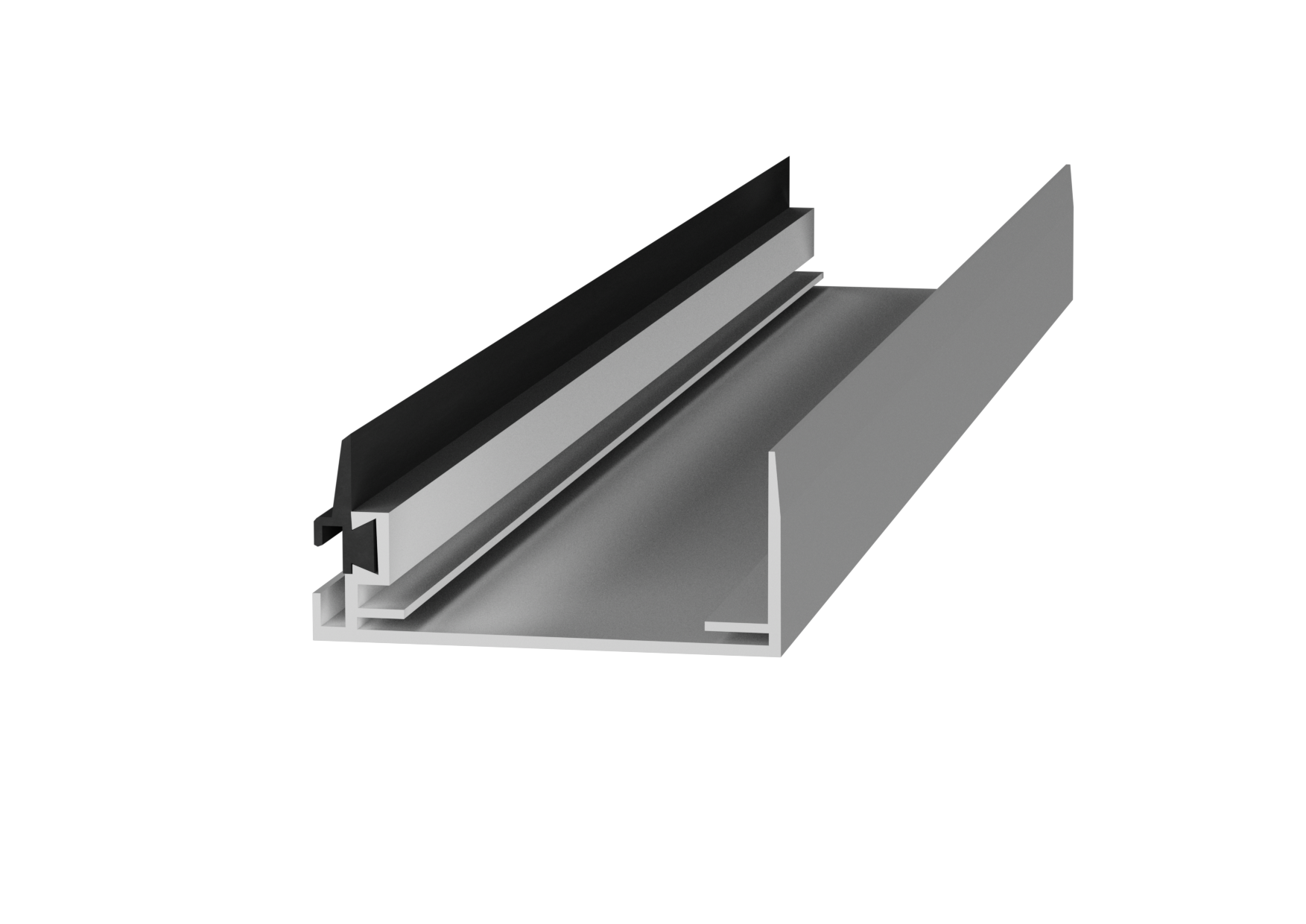

Product number IC10149

Aluminium door leaf profile for panel doors 80 mm thick

Additional features

Anodised aluminium (Alloy 6060)

Length of bars: 5.8 m

To be combined with PVC profile IC10164 for thermal bridge break

AVAILABLE OPTIONS 7 of 9

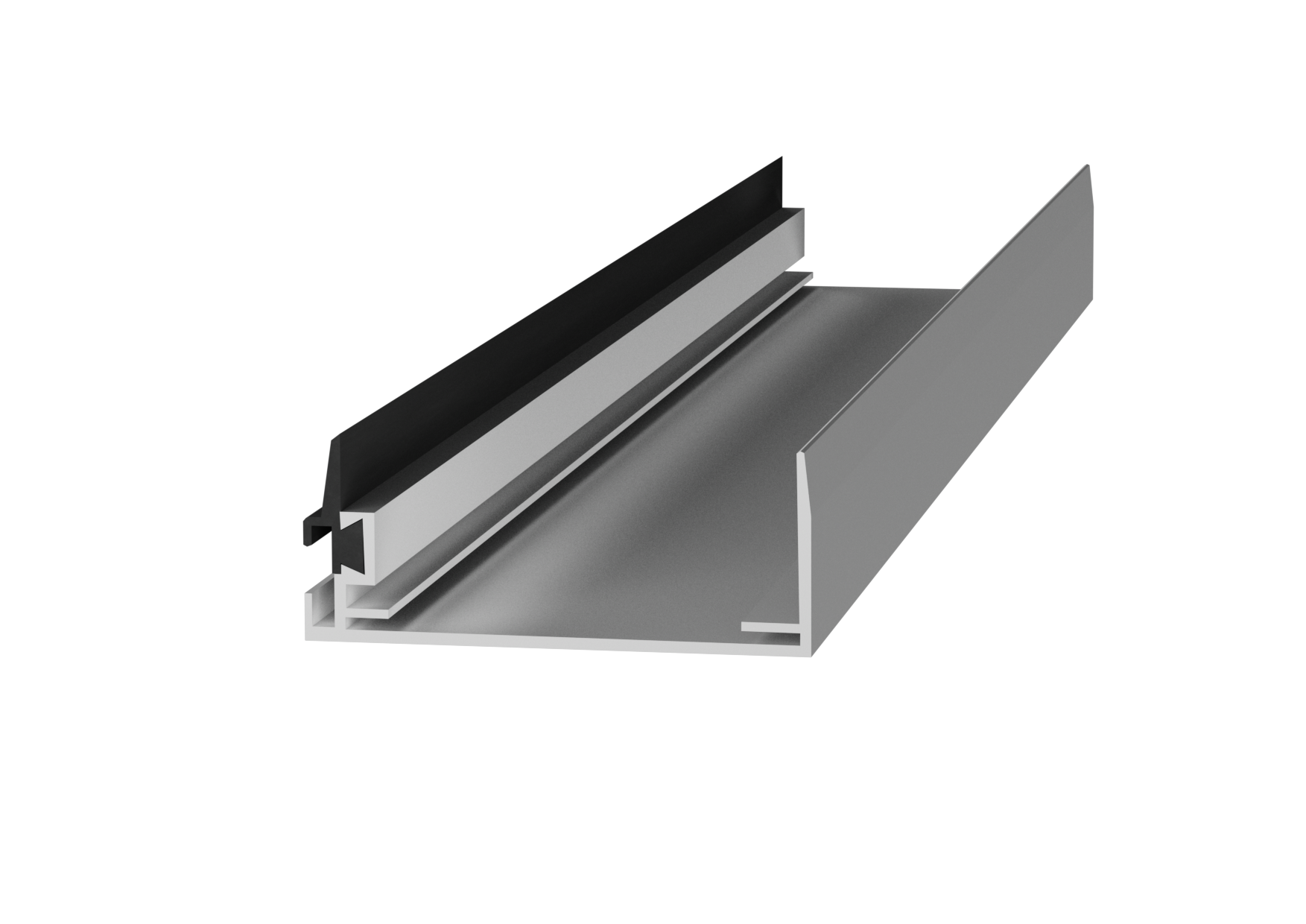

Product number IC10171

Aluminium door leaf profile for panel doors 100 mm thick

Additional features

Anodised aluminium (Alloy 6060)

Length of bars: 5.8 m

To be combined with PVC profile IC10164 for thermal bridge break

AVAILABLE OPTIONS 8 of 9

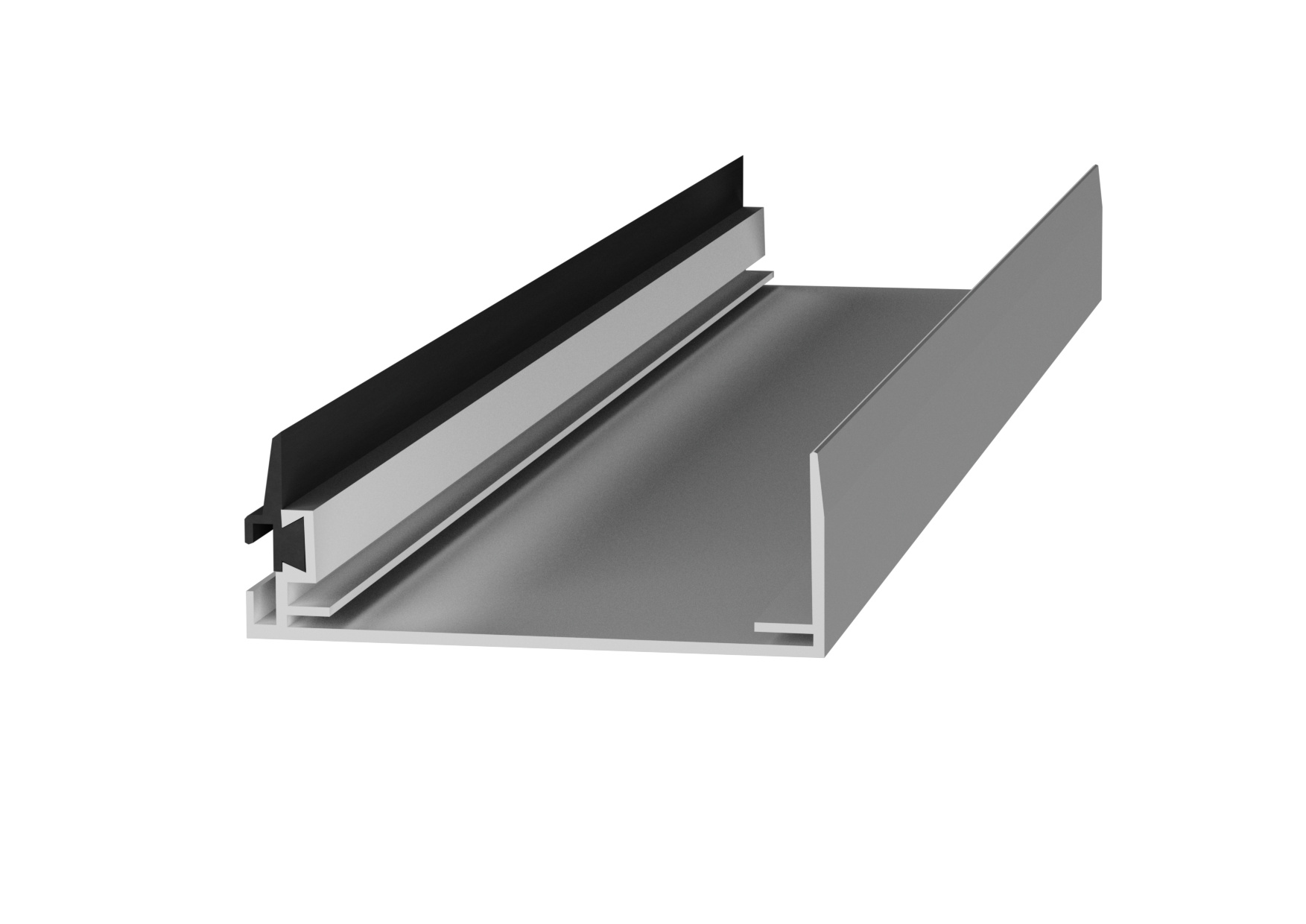

Product number IC10172

Aluminium door leaf profile for panel doors 120 mm thick

Additional features

Anodised aluminium (Alloy 6060)

Length of bars: 5.8 m

To be combined with PVC profile IC10164 for thermal bridge break

AVAILABLE OPTIONS 9 of 9

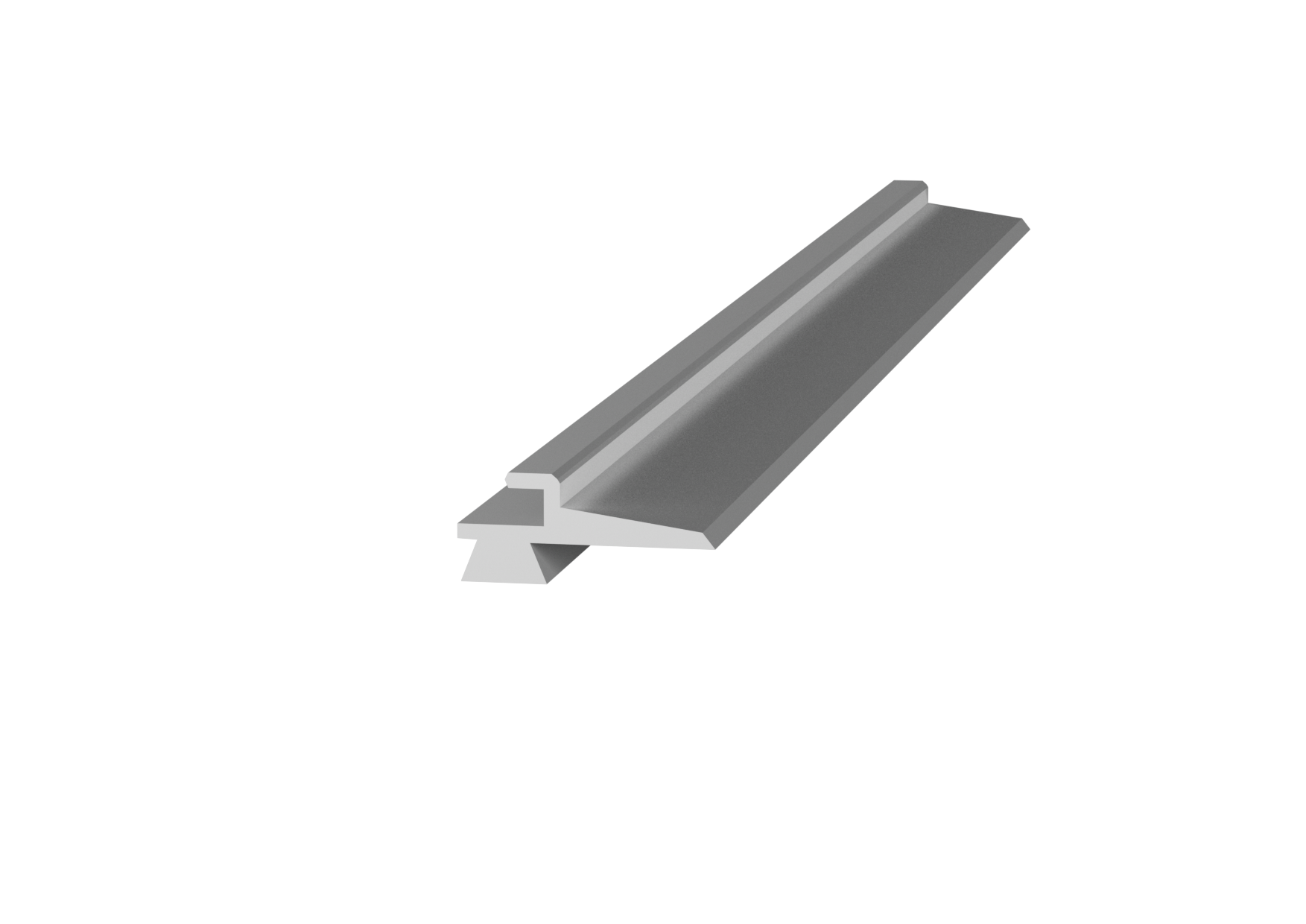

Product number IC10164

PVC door leaf profile for thermal bridge break

Additional features

Length of bars: 5.8 m

AVAILABLE OPTIONS 1 of 6

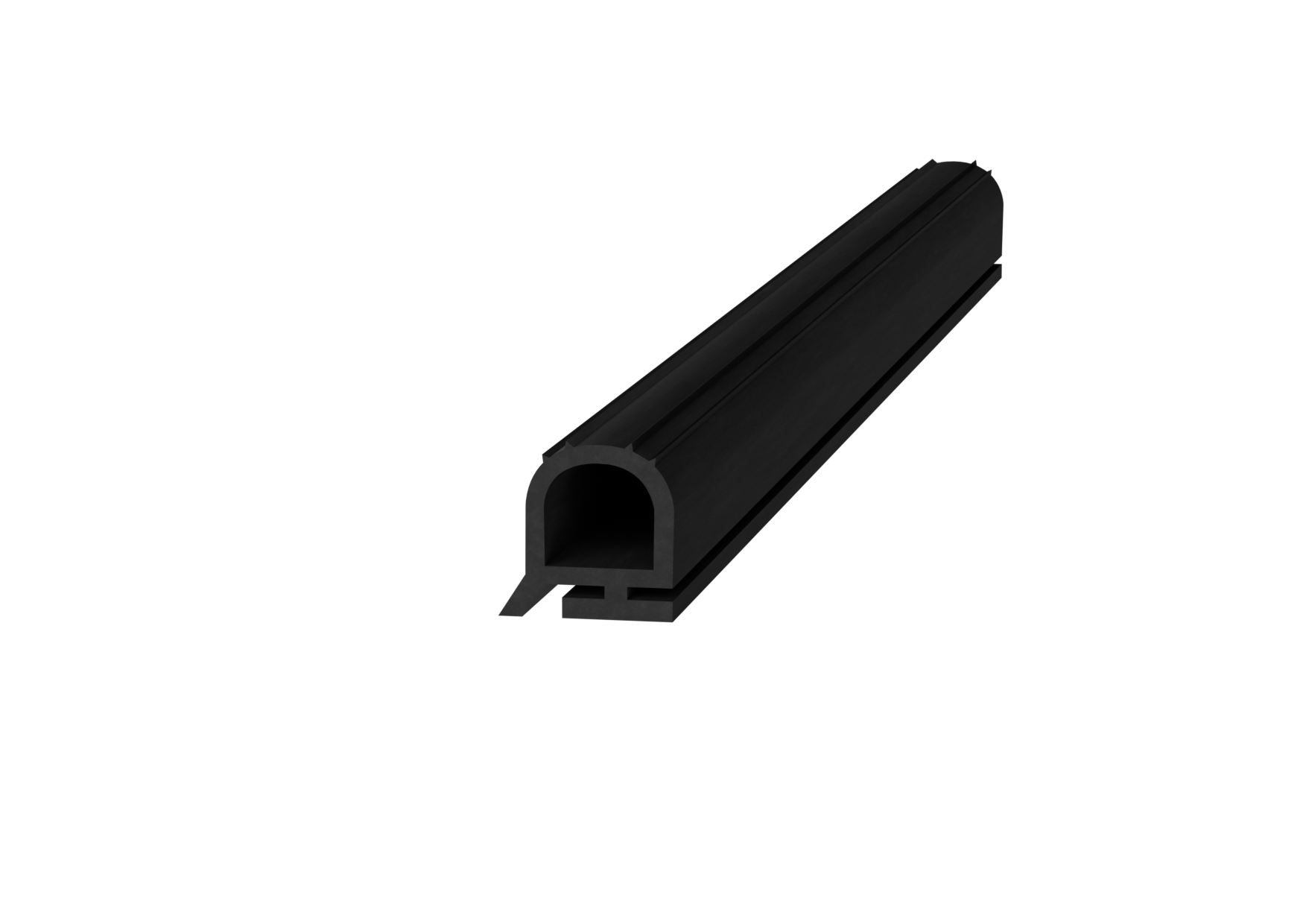

Product number IC10081

Small perimeter seal for TN doors

Additional features

Double density EPDM seal (suitable down to -40°C)

Roll length: 50 m

Seal to slide into the aluminium door leaf profile

AVAILABLE OPTIONS 2 of 6

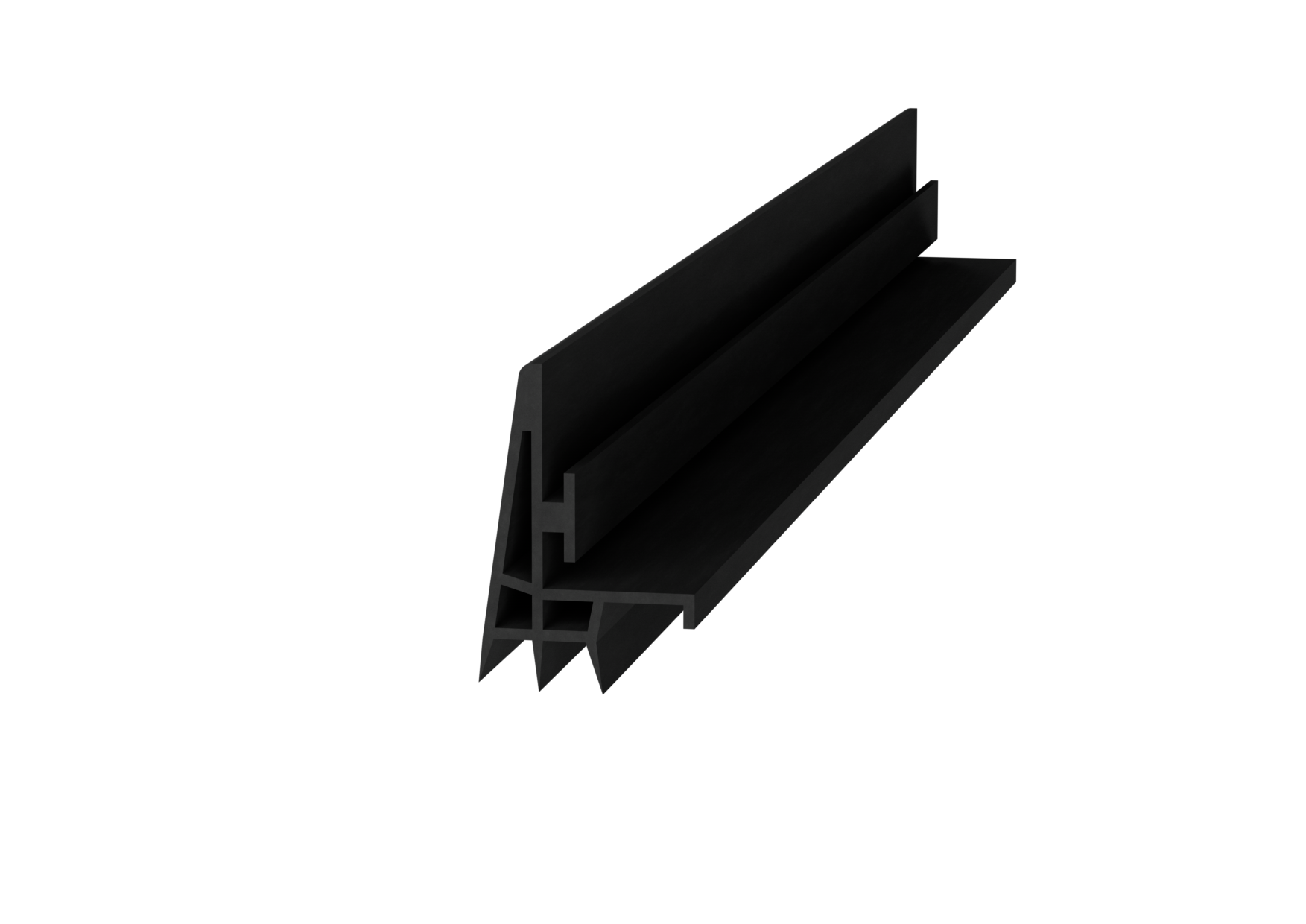

Product number IC10083

Small lower seal for TN doors

Additional features

Double density EPDM seal (suitable down to -40°C)

Roll length: 40 m

Seal to slide into the aluminium door leaf profile

AVAILABLE OPTIONS 3 of 6

Product number IC10084

Large perimeter seal for TN and BT doors

Additional features

Double density EPDM seal (suitable down to -40°C)

Roll length: 25 m

Seal to slide into the aluminium door leaf profile

AVAILABLE OPTIONS 4 of 6

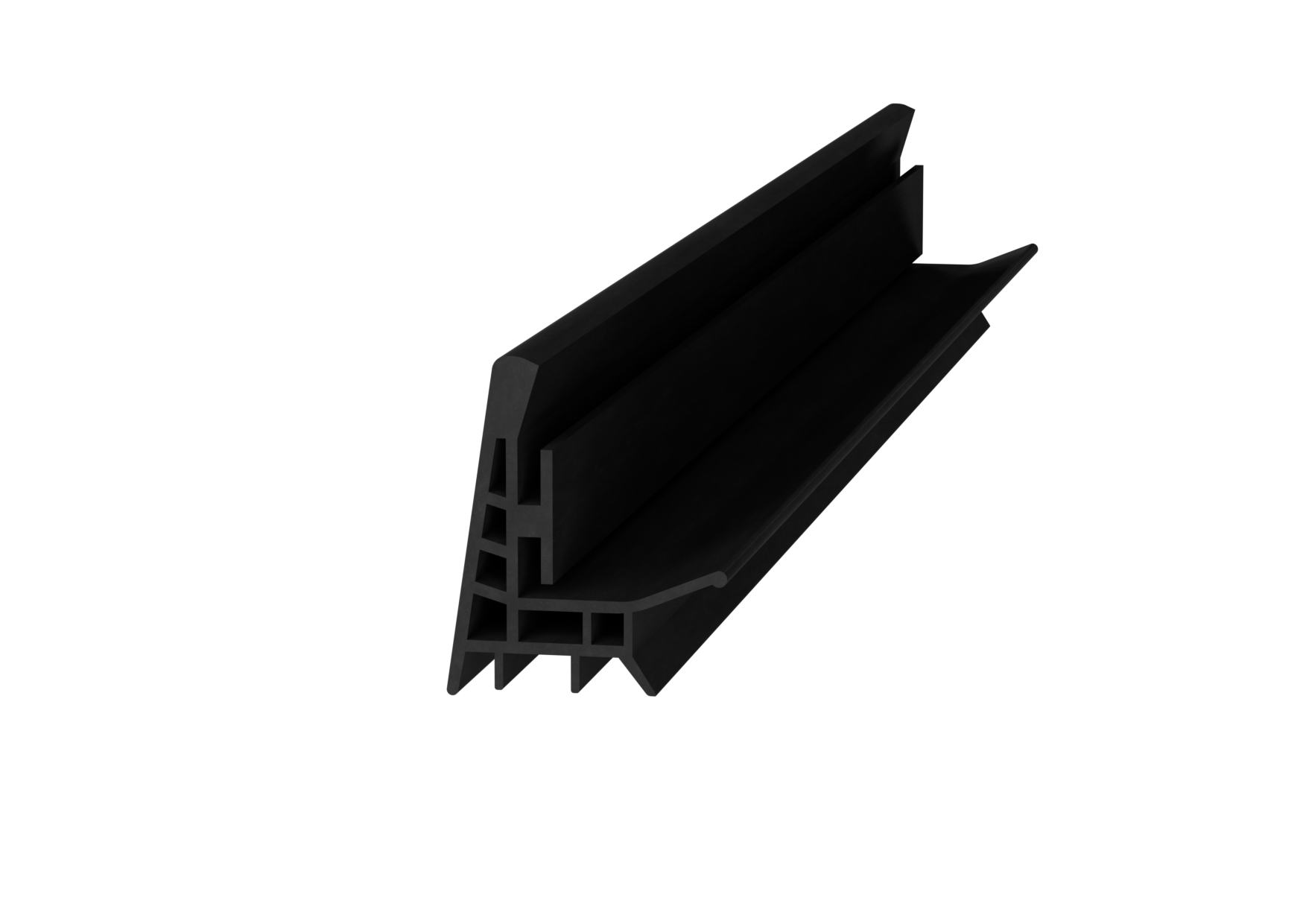

Product number IC10082

Large lower seal for TN and BT doors

Additional features

Double density EPDM seal (suitable down to -40°C)

Roll length: 30 m

Seal to slide into the aluminium door leaf profile

AVAILABLE OPTIONS 5 of 6

Product number IC10080

Perimeter seal with heating element passage for BT doors

Additional features

Double density EPDM seal (suitable down to -40°C)

Roll length: 25 m

Seal to slide into the aluminium door leaf profile

AVAILABLE OPTIONS 6 of 6

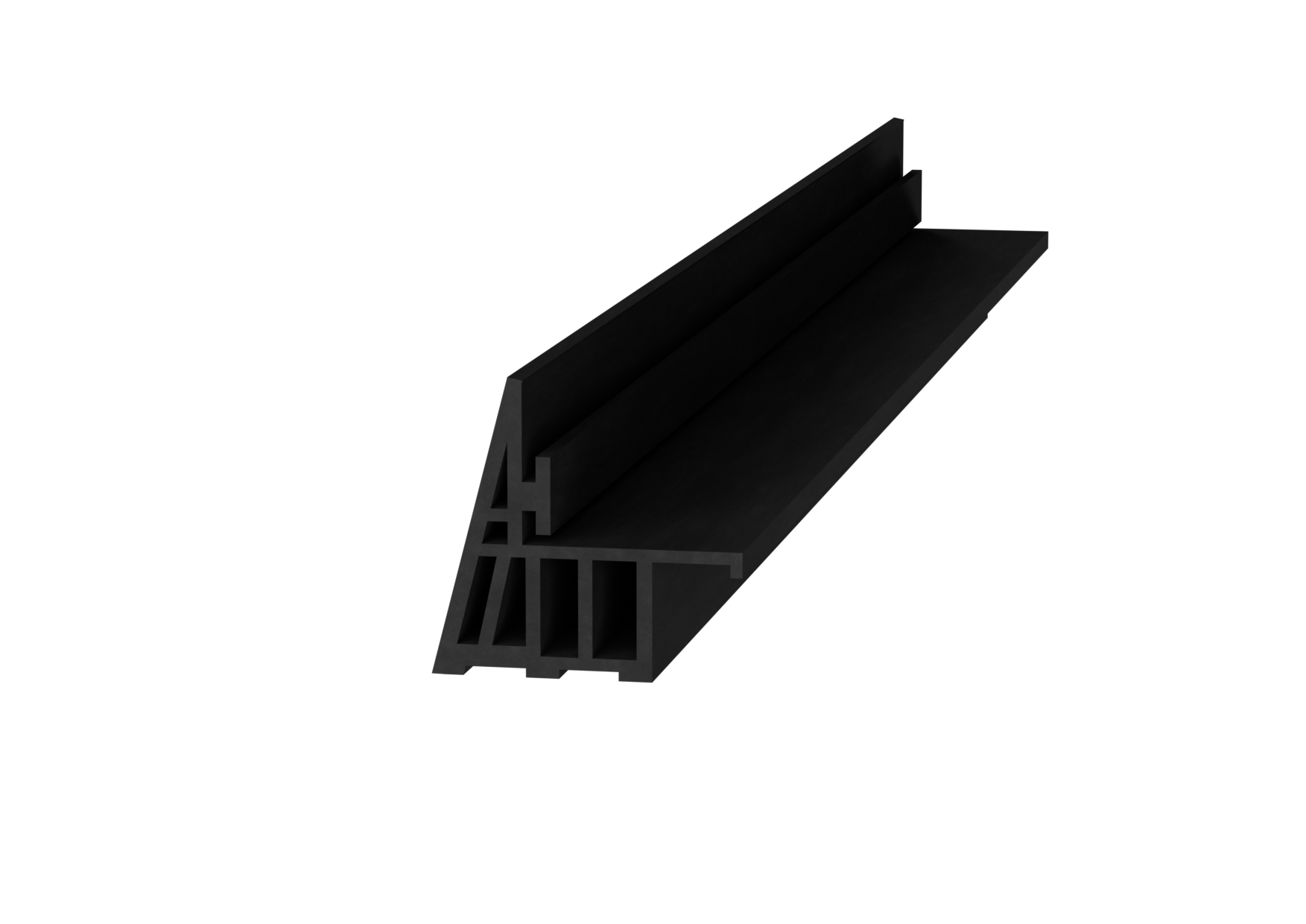

Product number IC10085

Lower seal with heating element passage for BT doors

Additional features

Double density EPDM seal (suitable down to -40°C)

Roll length: 20 m

Seal to slide into the aluminium door leaf profile

AVAILABLE OPTIONS 1 of 10

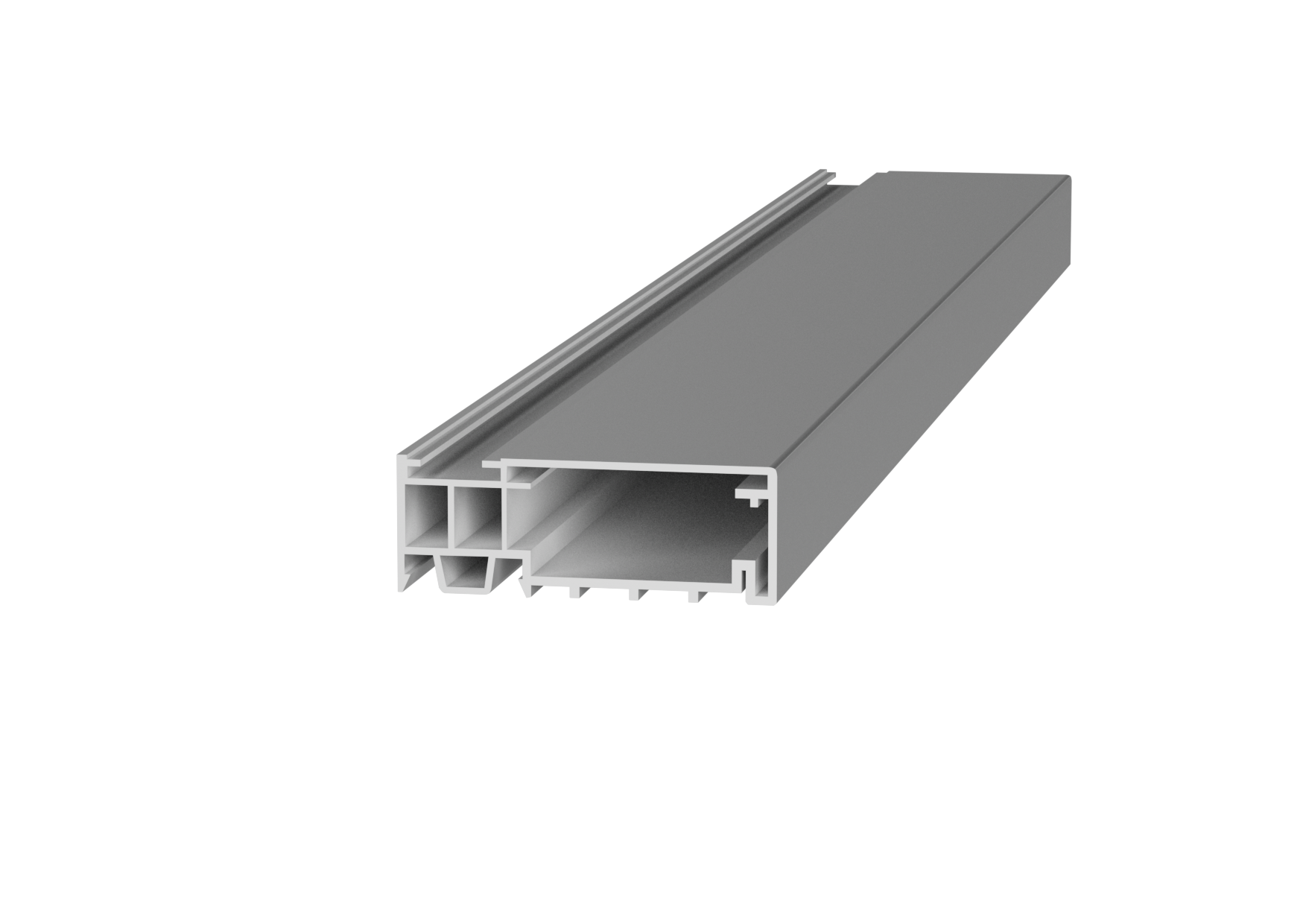

Product number IC10070

PVC profile for 130 mm flat front frame

Additional features

Material: PVC

Modular system suitable for installation on panels of different thicknesses

Available with or without duct for housing heating element and cover in aluminium or PVC

Profile section made for insertion of metal reinforcements suitable for mounting accessories

Length of bars: 5.8 m

Colour: RAL9010 standard, RAL9002 on request with minimum extrusion quantity

AVAILABLE OPTIONS 2 of 10

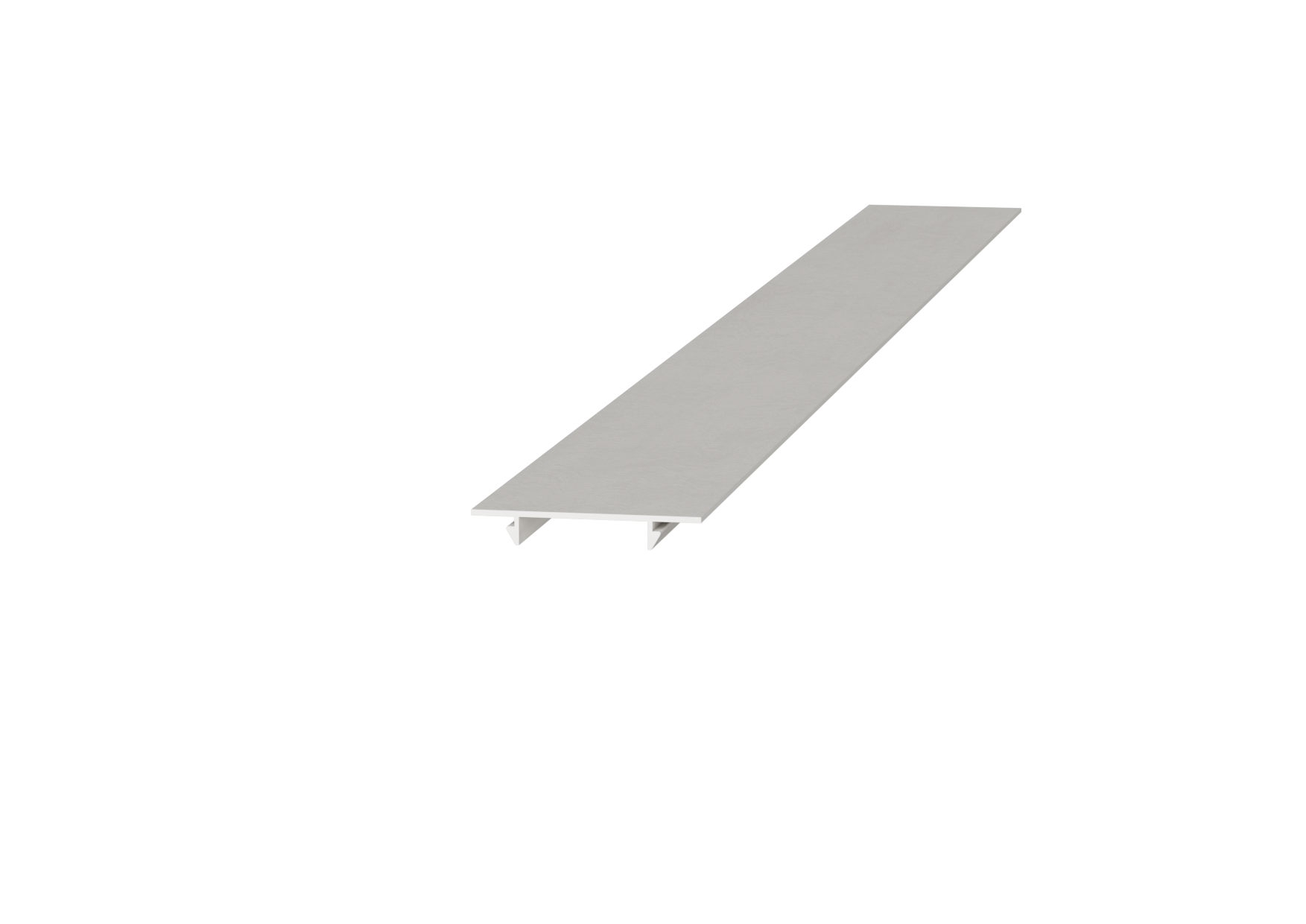

Product number IC10071

PVC frame cap

Additional features

Material: PVC

Length of bars: 5.8 m

Colour: RAL9010 standard, RAL9002 on request with minimum extrusion quantity

AVAILABLE OPTIONS 3 of 10

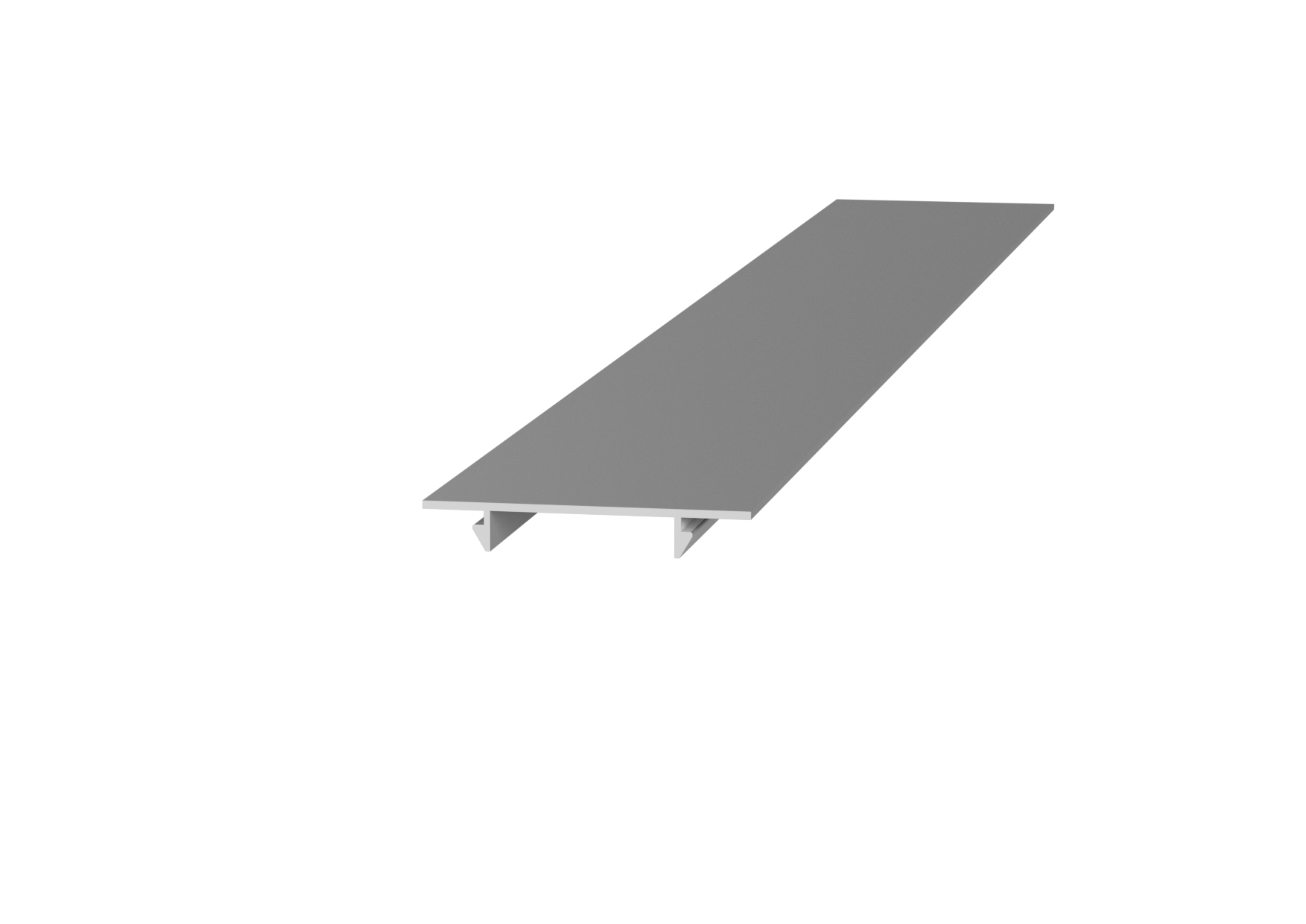

Product number IC10173

130 mm front flat frame cover profile for housing the heating element

Additional features

Material: anodised aluminium

Length of bars: 5.8 m

AVAILABLE OPTIONS 4 of 10

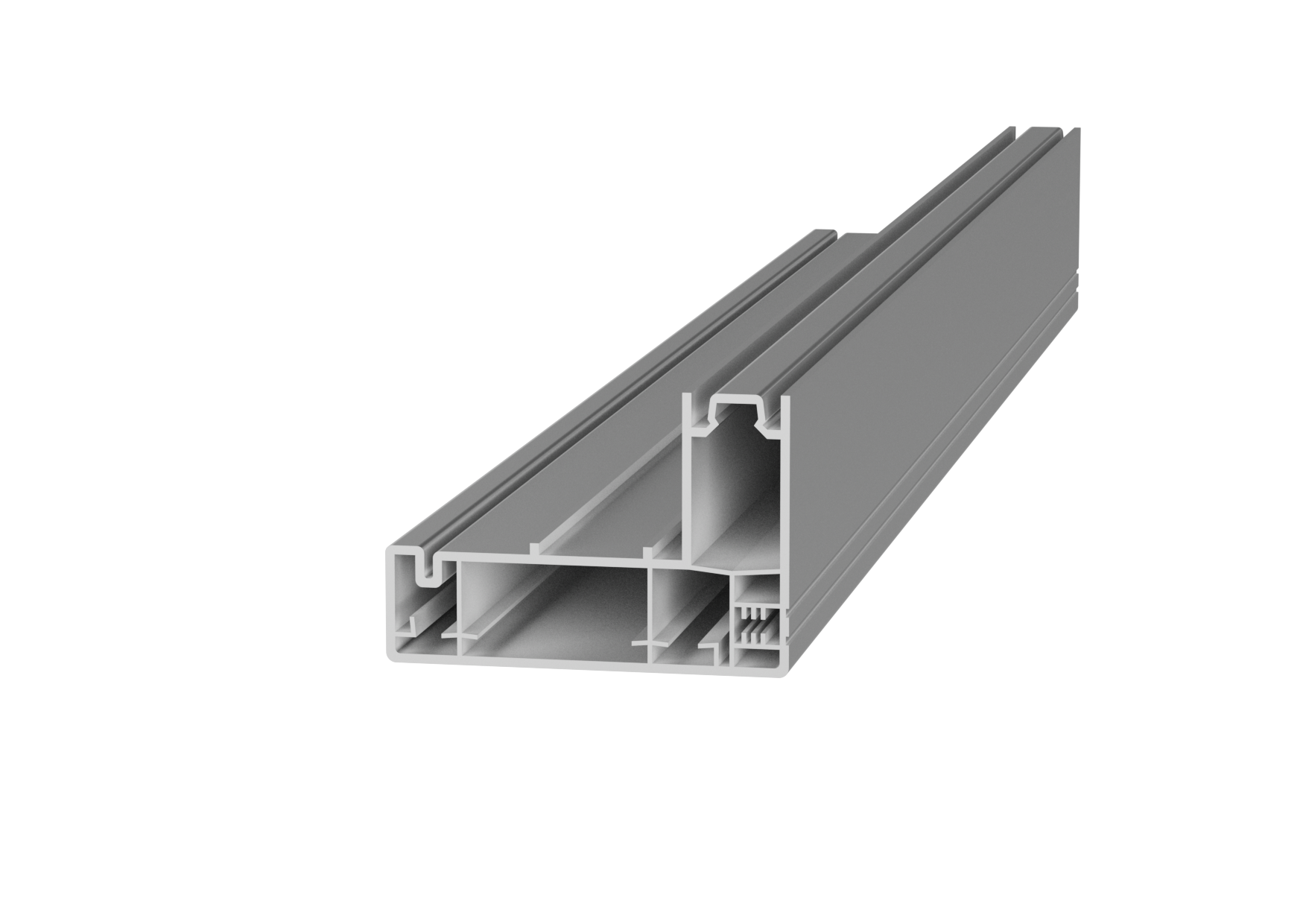

Product number IC10066

130 x 60 mm L-shaped PVC profile for frame

Additional features

Material: PVC

Modular system suitable for installation on panels of different thicknesses

Profile section made for insertion of metal reinforcements suitable for mounting accessories

Length of bars: 5.8 m

Colour: RAL9010 standard, RAL9002 on request with minimum extrusion quantity

AVAILABLE OPTIONS 5 of 10

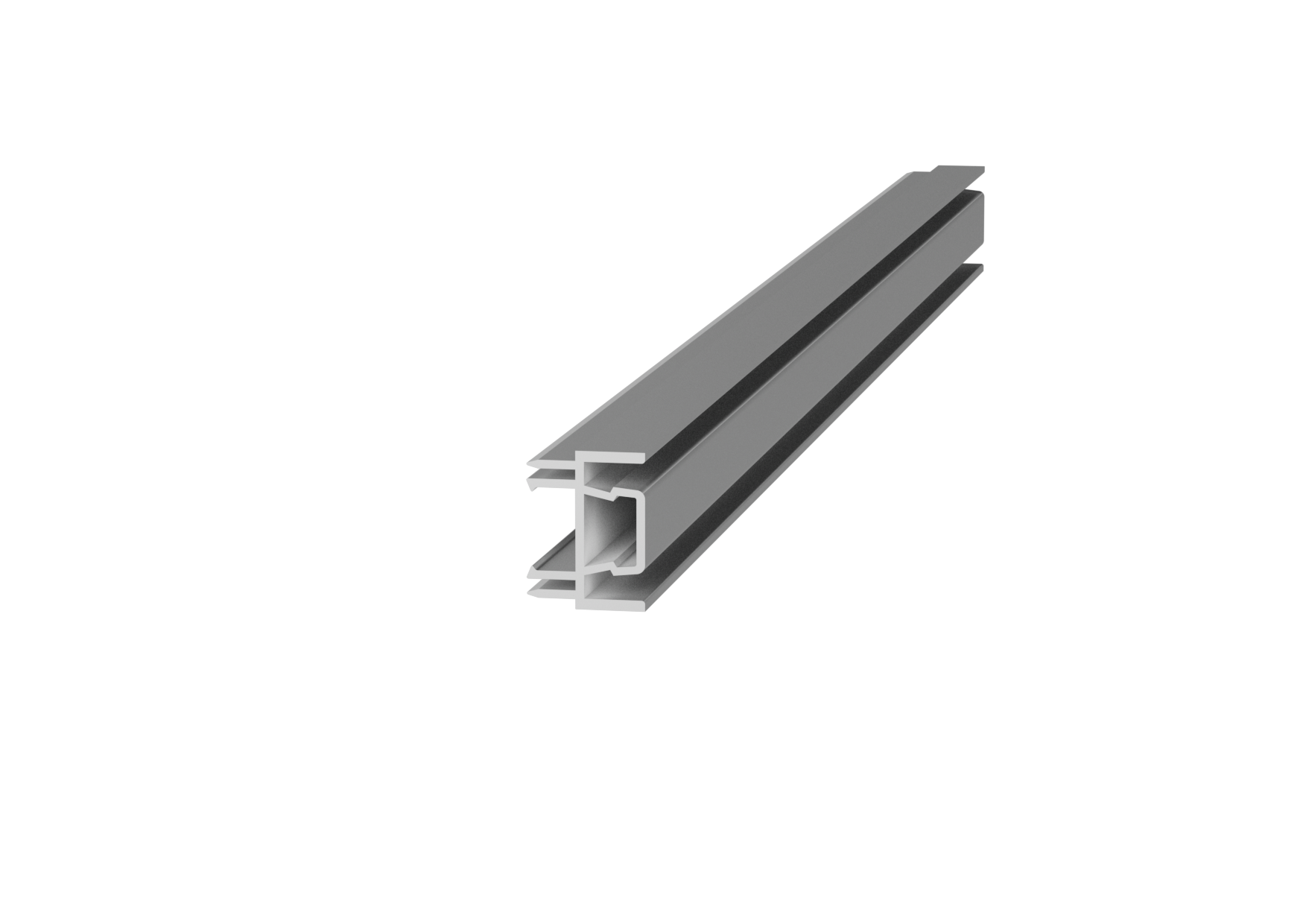

Product number IC10067

20 mm wide PVC rib for covering cold room panel

Additional features

Material: PVC

Modular system suitable for installation on panels of different thicknesses

Length of bars: 5.8 m

Colour: RAL9010 standard, RAL9002 on request with minimum extrusion quantity

AVAILABLE OPTIONS 6 of 10

Product number IC10215

30 mm wide PVC rib for covering cold room panel

Additional features

Material: PVC

Modular system suitable for installation on panels of different thicknesses

Length of bars: 5.8 m

Colour: RAL9010 standard, RAL9002 on request with minimum extrusion quantity

AVAILABLE OPTIONS 7 of 10

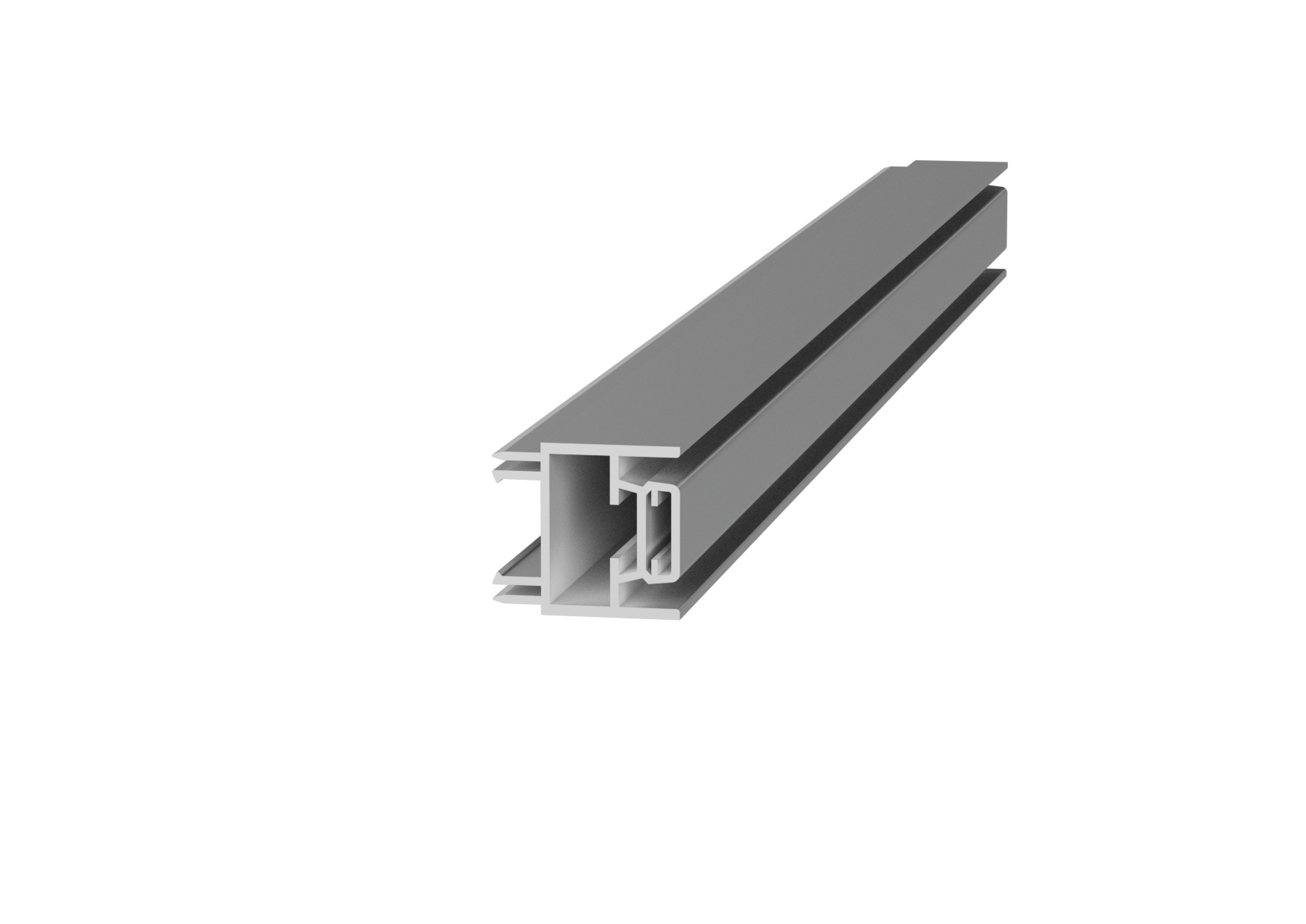

Product number IC10068

40 mm wide PVC rib for covering cold room panel

Additional features

Material: PVC

Modular system suitable for installation on panels of different thicknesses

Length of bars: 5.8 m

Colour: RAL9010 standard, RAL9002 on request with minimum extrusion quantity

AVAILABLE OPTIONS 8 of 10

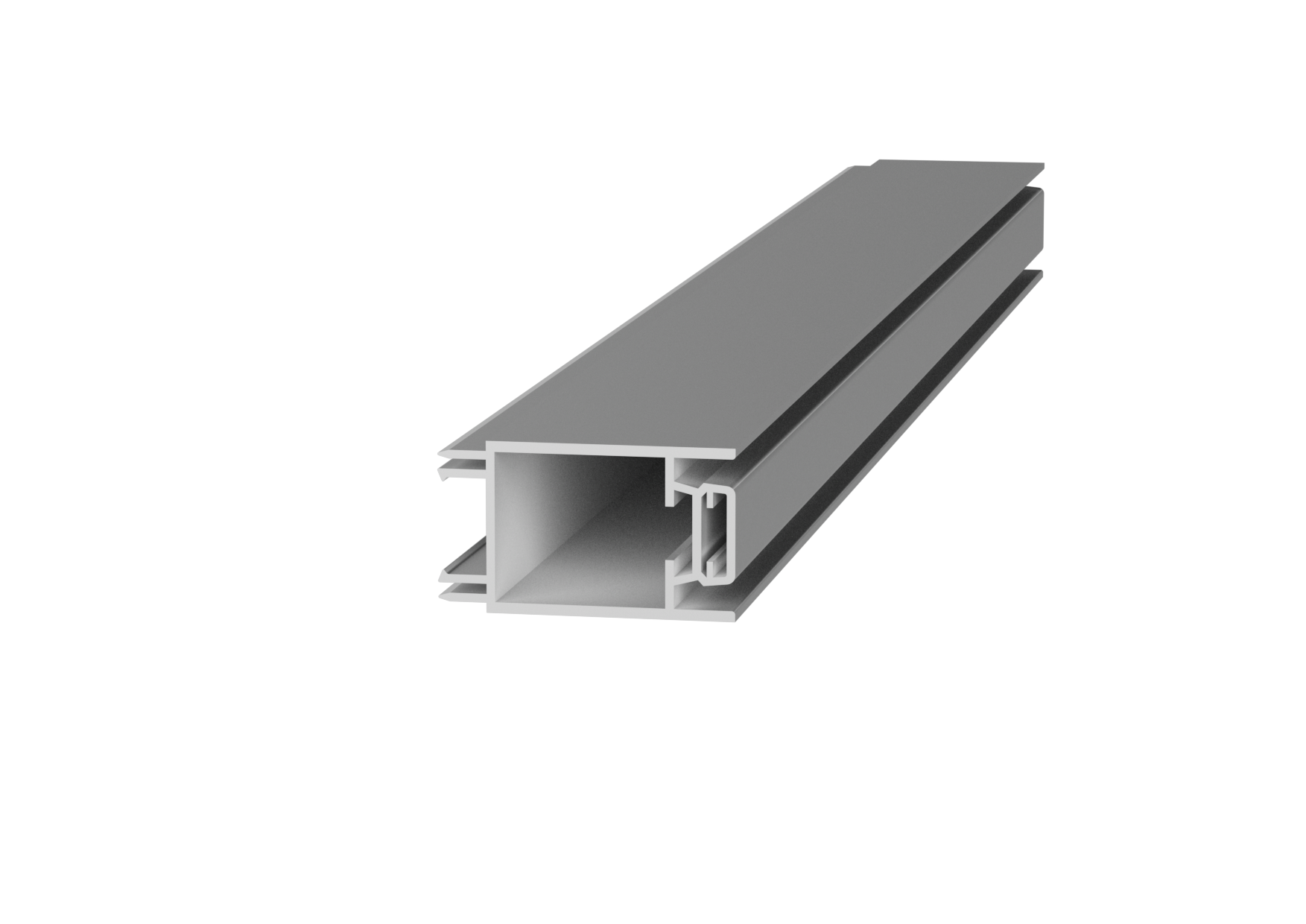

Product number IC10069

100 mm wide PVC rib for covering cold room panel

Additional features

Material: PVC

Modular system suitable for installation on panels of different thicknesses

Length of bars: 5.8 m

Colour: RAL9010 standard, RAL9002 on request with minimum extrusion quantity

AVAILABLE OPTIONS 9 of 10

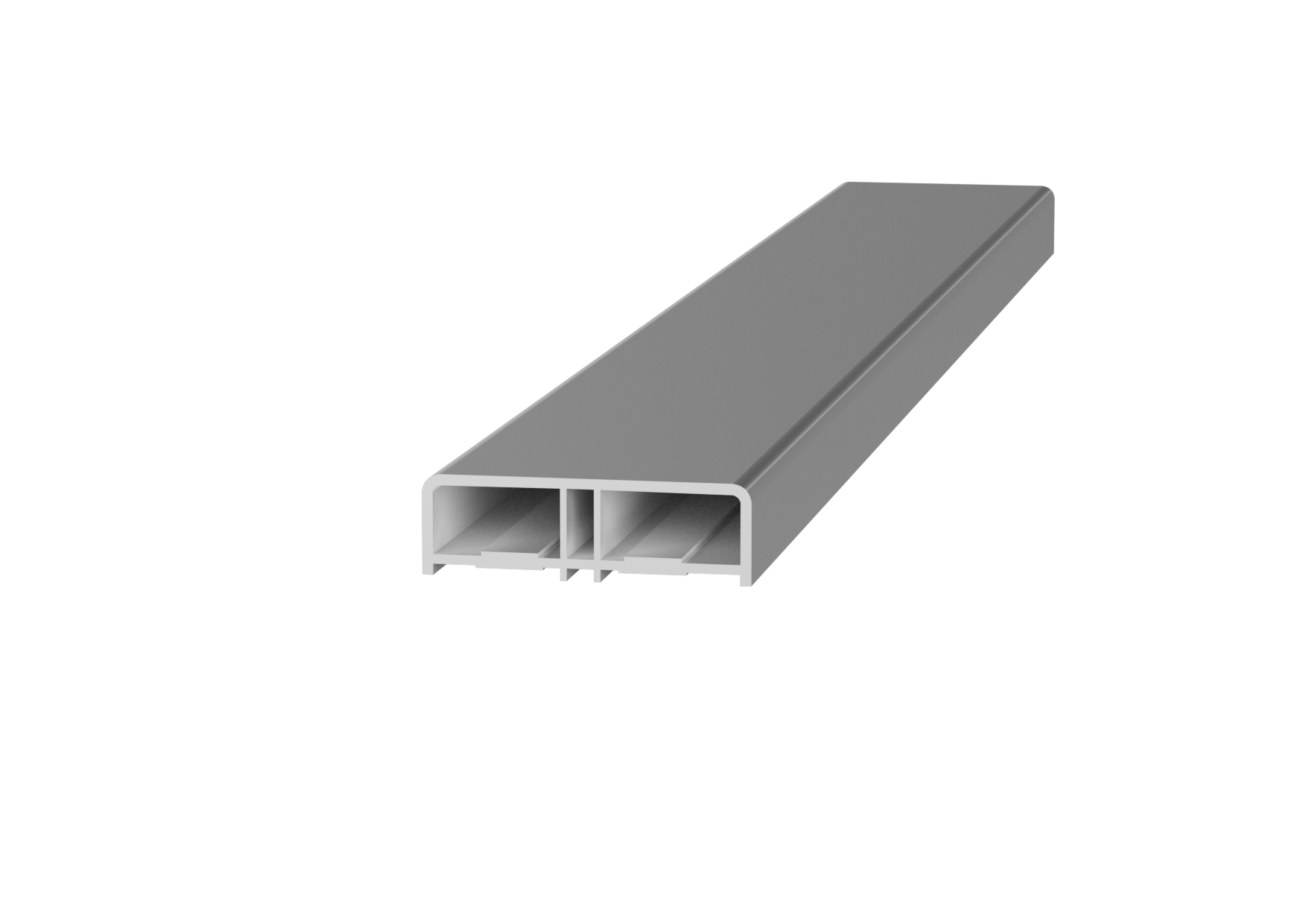

Product number IC10072

PVC profile for counter frame

Additional features

Material: PVC

For use with PVC profile IC10169 to connect frame and counter frame

Length of bars: 5.8 m

Colour: RAL9010 standard, RAL9002 on request with minimum extrusion quantity

AVAILABLE OPTIONS 10 of 10

Product number IC10169

PVC profile to connect frame with counter frame

Additional features

Material: PVC

Length of bars: 2.5 m

Colour: grey

AVAILABLE OPTIONS 1 of 5

Product number IC10055

Small constant power heating element without metal mesh

Additional features

Silicone protection

Supply voltage: 110V to 400V

Outside diameter: 3.5 mm ± 0.2 mm

Operating temperatures: - 60°C to + 200°C (+ 230°C for short periods)

easily identifiable heating section thanks to the connection points marked with a continuous black line at 500 mm intervals

Comes in coils from 100 m - 250 m - 500 m

AVAILABLE OPTIONS 2 of 5

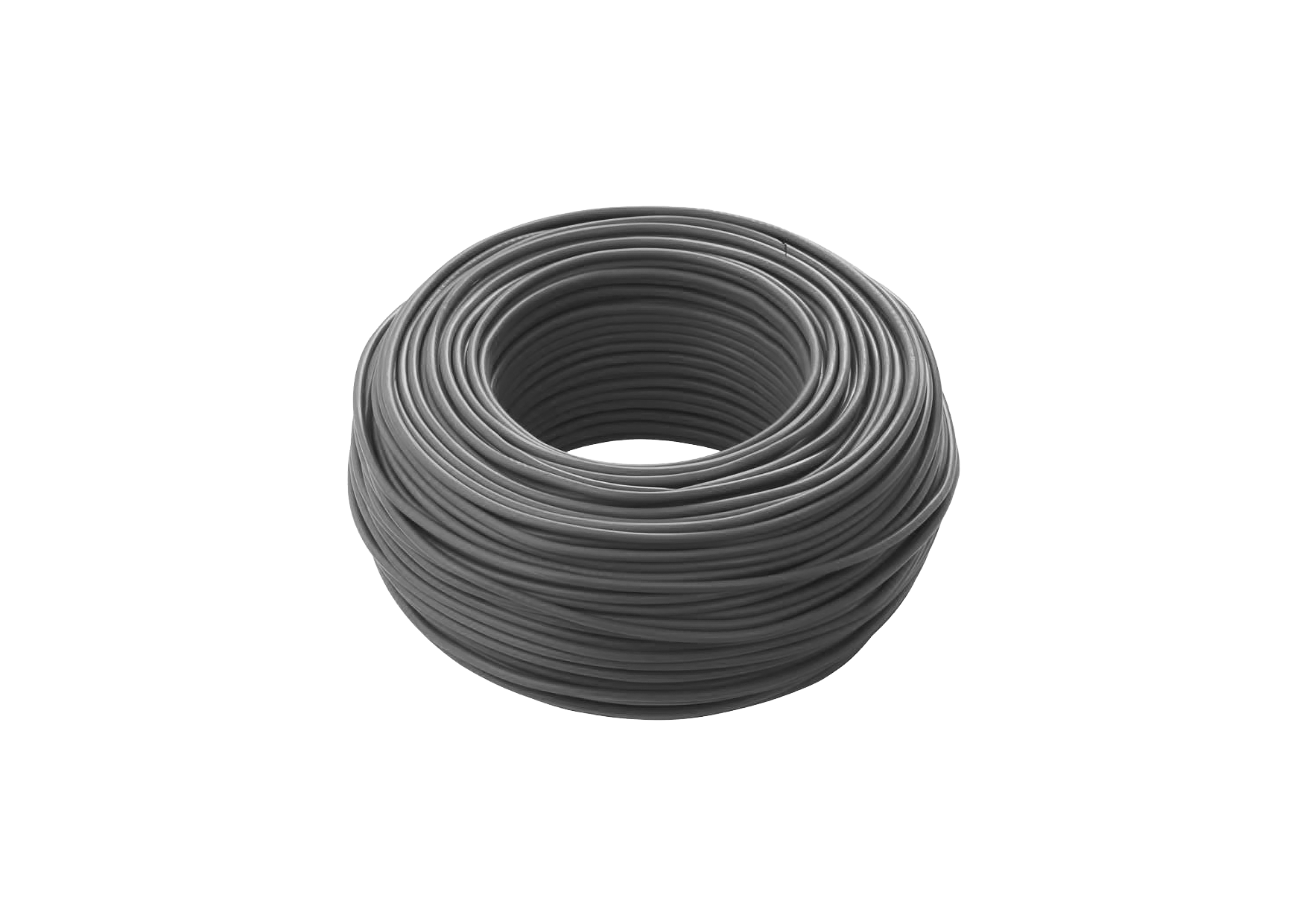

Product number IC10056

Small constant power heating element with metal mesh

Additional features

External metal mesh to ensure additional mechanical protection and earthing of the cable

Supply voltage: 110V to 400V

Specific power per metre: 10W/m to 60W/m ± 10%

Outside diameter: 3.5mm ± 0.2mm

Operating temperatures: - 60°C to + 200°C (+ 230°C for short periods)

easily identifiable heating section thanks to the connection points marked with a continuous black line at 500 mm intervals

Comes in coils from 100 m - 250 m - 500 m

AVAILABLE OPTIONS 3 of 5

Product number IC10054

Power and termination kit

Additional features

1 Cap Ø 6/1.4 L: 50 mm ESPC

1 Heat shrink material Ø 6/2 L: 50 mm TRDP6-B

AVAILABLE OPTIONS 4 of 5

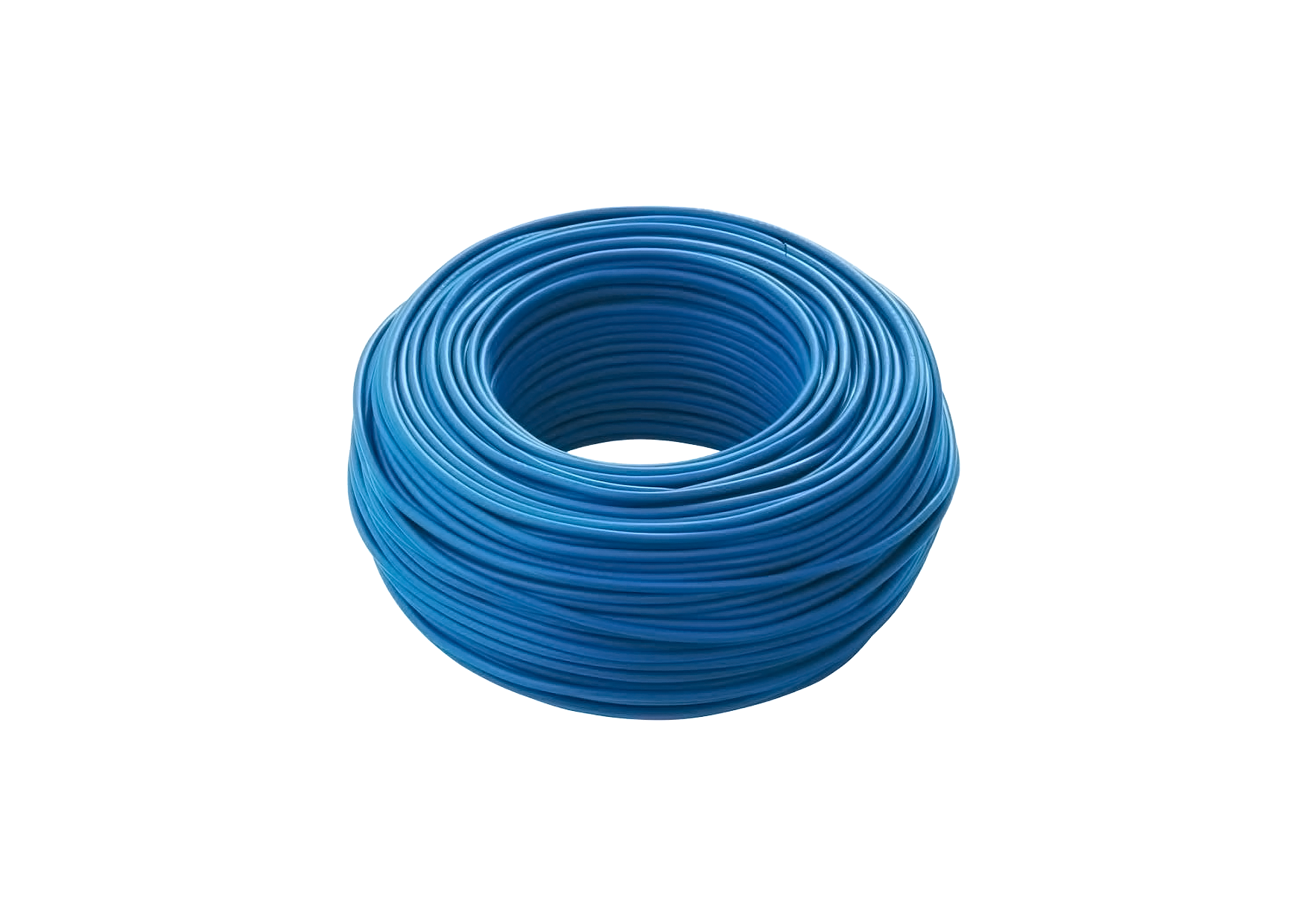

Product number IC10049

Blue 1 x 1 mm cable

Additional features

Cold part heating element

AVAILABLE OPTIONS 5 of 5

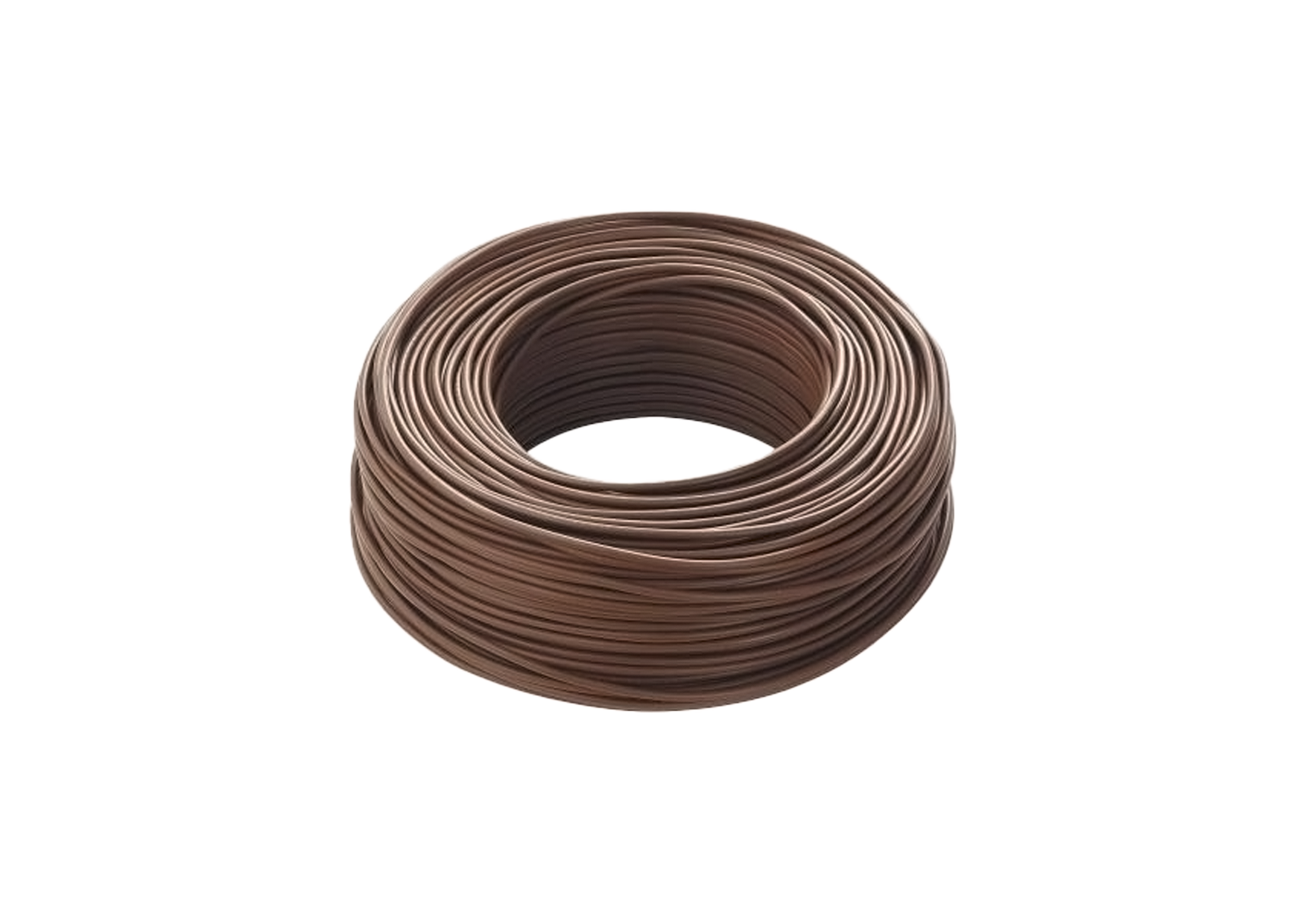

Product number IC10050

Brown 1 x 1 mm cable

Additional features

Cold part heating element

AVAILABLE OPTIONS 1 of 16

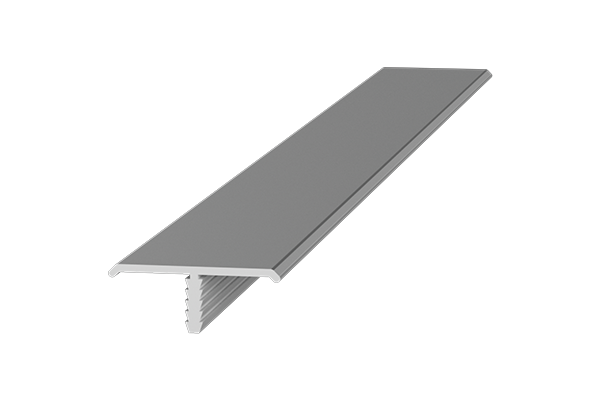

Product number IC10170

T-shaped anodised aluminium profile

Additional features

Anodised aluminium (Alloy 6060)

Length of bars: 6 m

AVAILABLE OPTIONS 2 of 16

Product number IC10154

H-shaped anodised aluminium profile

Additional features

Anodised aluminium (Alloy 6060)

Length of bars: 6 m

AVAILABLE OPTIONS 3 of 16

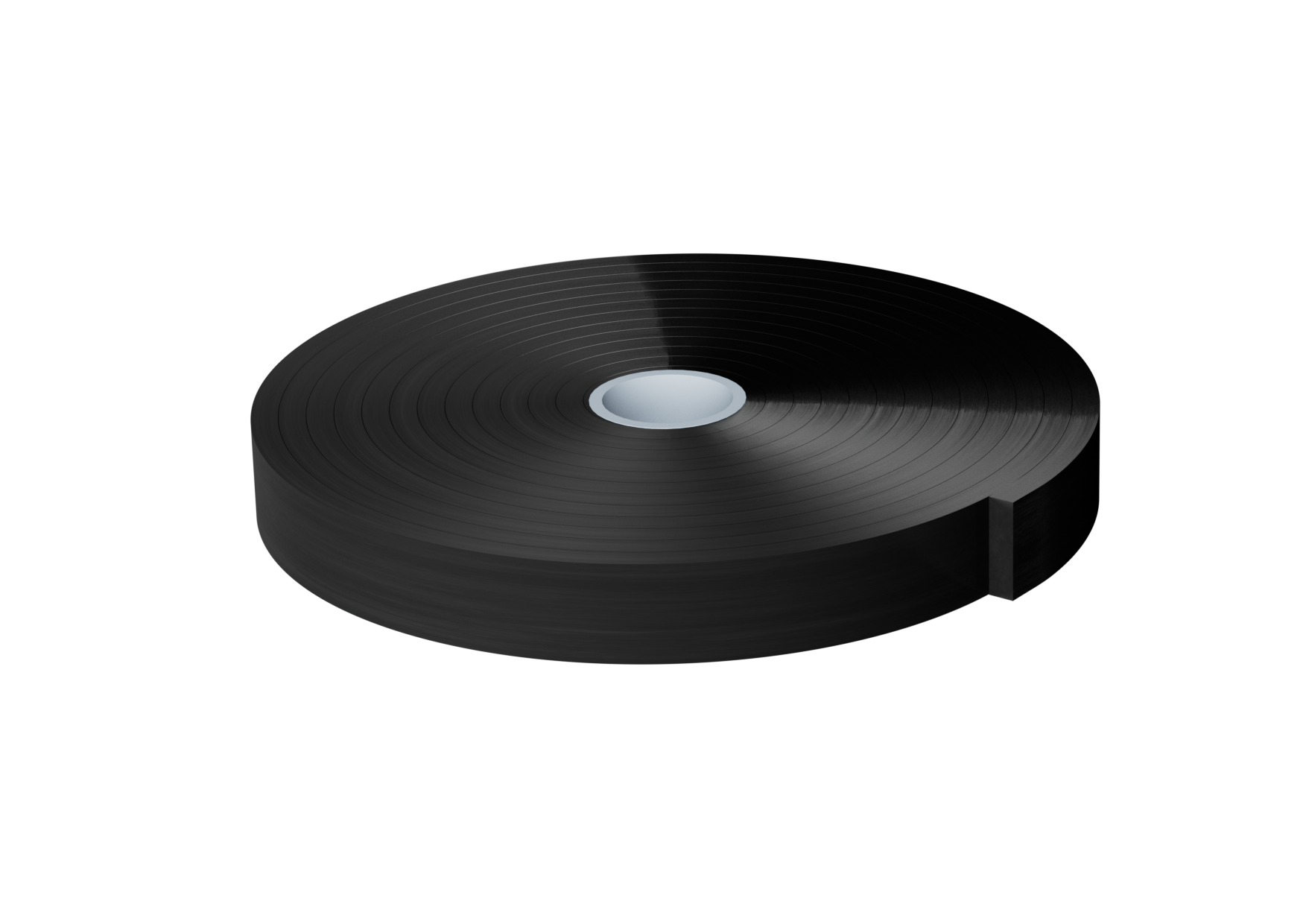

Product number IC10024

Double-sided foam seal for thermal bridge break

Additional features

15 x 4 mm double-sided macrilene foam

Rolls of 25 metres

AVAILABLE OPTIONS 4 of 16

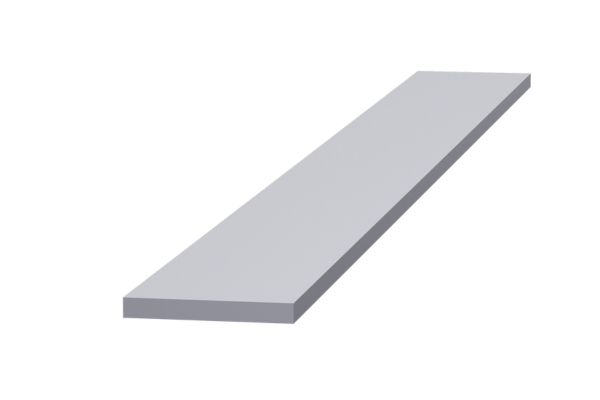

Product number IC10065

Assembly reinforcement

Additional features

Material: galvanised iron

AVAILABLE OPTIONS 5 of 16

Product number IC10043

Plastic spacer for foam doors

Additional features

h: 60 mm

AVAILABLE OPTIONS 6 of 16

Product number IC10044

Plastic spacer for foam doors

Additional features

h: 90 mm

AVAILABLE OPTIONS 7 of 16

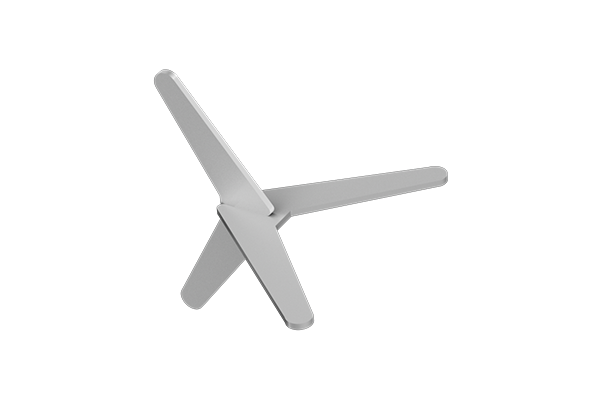

Product number IC10045

Plastic spacer for foam doors

Additional features

h: 120 mm

AVAILABLE OPTIONS 8 of 16

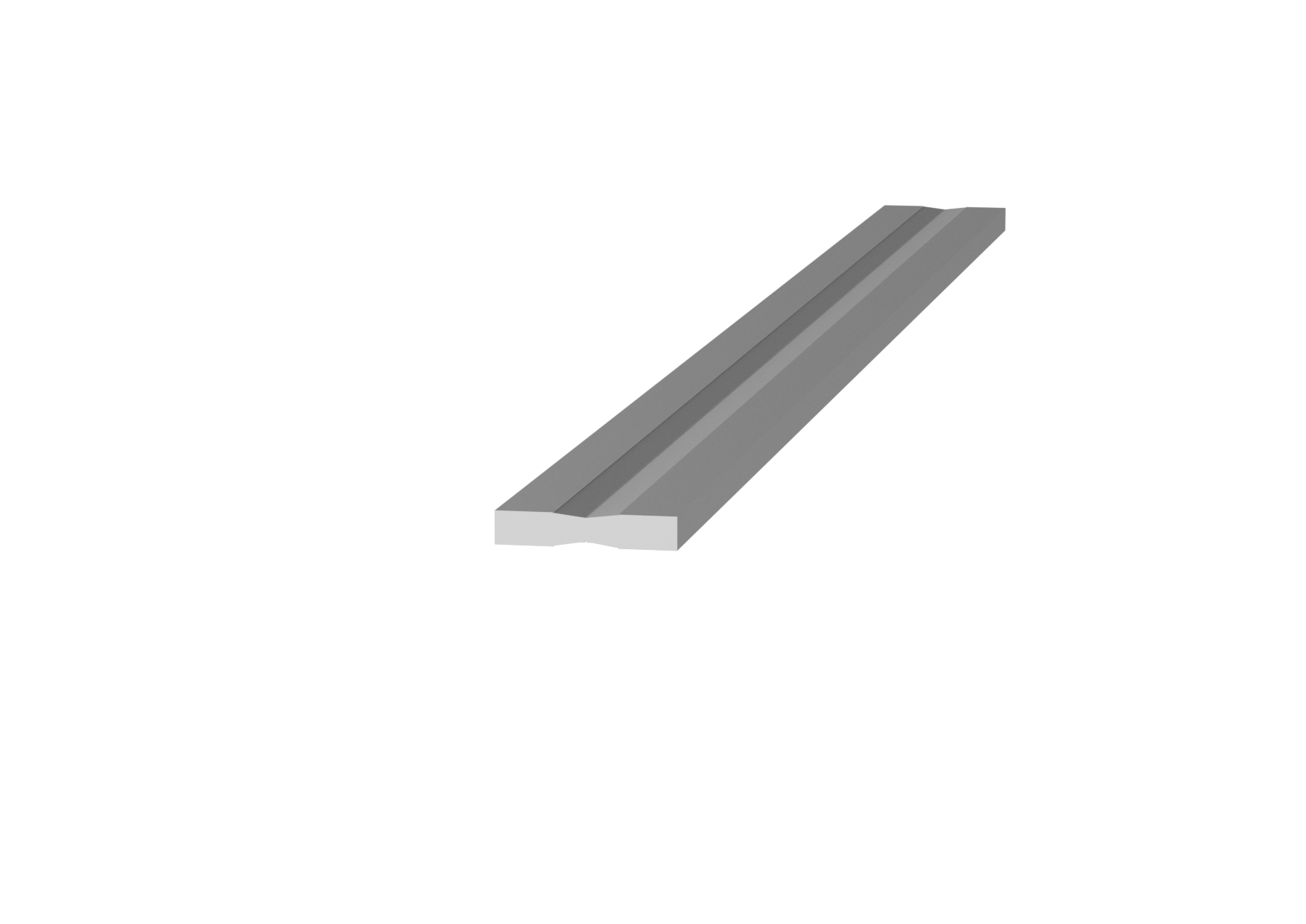

Product number IC10167

15 x 4 mm plate

Additional features

Material: PVC

AVAILABLE OPTIONS 9 of 16

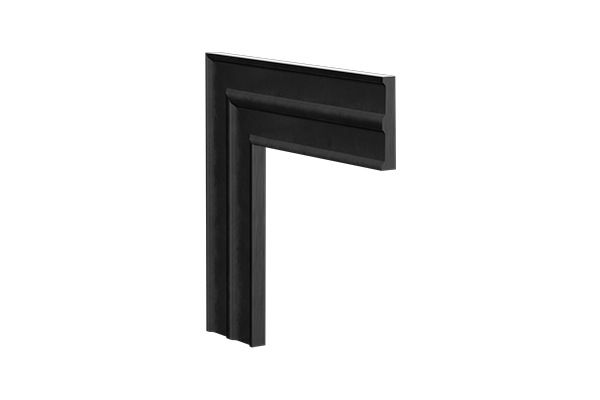

Product number IC10188

Large angle reinforcement

Additional features

Reinforced plastic material

AVAILABLE OPTIONS 10 of 16

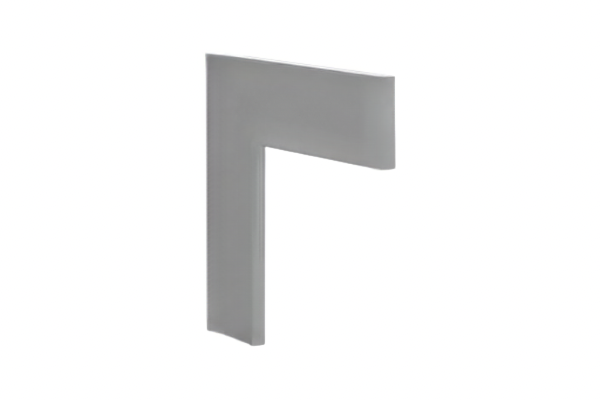

Product number IC10091

Connecting angle

Additional features

Material: aluminium

AVAILABLE OPTIONS 11 of 16

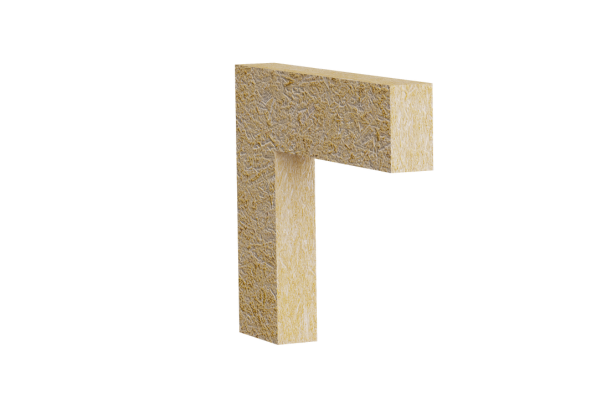

Product number IC10138

Angles for assembly of counter frame

Additional features

Material: wood

AVAILABLE OPTIONS 12 of 16

Product number IC10028

PVC nuts M12 for tie rods

Additional features

Natural colour

AVAILABLE OPTIONS 13 of 16

Product number IC10029

Washer for tie rods M12

Additional features

Natural colour

AVAILABLE OPTIONS 14 of 16

Product number IC10030

12 x 160 mm tie rod

Additional features

Natural colour

Suitable for cold room panel thickness 50/60/80 mm

AVAILABLE OPTIONS 15 of 16

Product number IC10031

12 x 230 mm tie rod

Additional features

Natural colour

Suitable for cold room panel thickness 100/120/150 mm

AVAILABLE OPTIONS 16 of 16

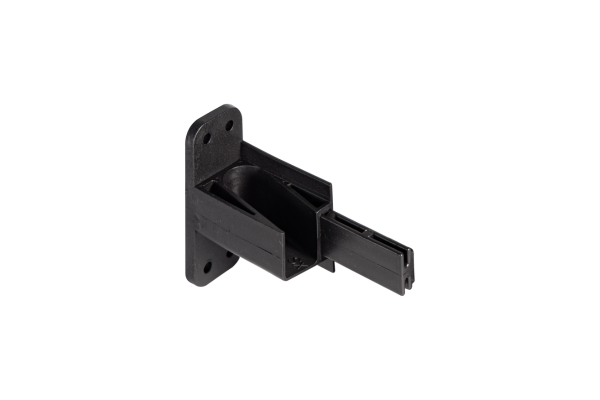

Product number IC10032

12 x 300 mm tie rod

Additional features

Natural colour

Suitable for cold room panel thickness 180/200 mm

Kit for hinged cold room doors

Handles6

Hinges8

Door Leaf Profiles9

Seals6

Frame Profiles10

Heating Elements5

Connection Elements16

AVAILABLE OPTIONS 1 of 6

AVAILABLE OPTIONS 2 of 6

AVAILABLE OPTIONS 3 of 6

AVAILABLE OPTIONS 4 of 6

AVAILABLE OPTIONS 5 of 6

AVAILABLE OPTIONS 6 of 6

AVAILABLE OPTIONS 1 of 8

AVAILABLE OPTIONS 2 of 8

AVAILABLE OPTIONS 3 of 8

AVAILABLE OPTIONS 4 of 8

AVAILABLE OPTIONS 5 of 8

AVAILABLE OPTIONS 6 of 8

AVAILABLE OPTIONS 7 of 8

AVAILABLE OPTIONS 8 of 8

AVAILABLE OPTIONS 1 of 9

AVAILABLE OPTIONS 2 of 9

AVAILABLE OPTIONS 3 of 9

AVAILABLE OPTIONS 4 of 9

AVAILABLE OPTIONS 5 of 9

AVAILABLE OPTIONS 6 of 9

AVAILABLE OPTIONS 7 of 9

AVAILABLE OPTIONS 8 of 9

AVAILABLE OPTIONS 9 of 9

AVAILABLE OPTIONS 1 of 6

AVAILABLE OPTIONS 2 of 6

AVAILABLE OPTIONS 3 of 6

AVAILABLE OPTIONS 4 of 6

AVAILABLE OPTIONS 5 of 6

AVAILABLE OPTIONS 6 of 6

AVAILABLE OPTIONS 1 of 10

AVAILABLE OPTIONS 2 of 10

AVAILABLE OPTIONS 3 of 10

AVAILABLE OPTIONS 4 of 10

AVAILABLE OPTIONS 5 of 10

AVAILABLE OPTIONS 6 of 10

AVAILABLE OPTIONS 7 of 10

AVAILABLE OPTIONS 8 of 10

AVAILABLE OPTIONS 9 of 10

AVAILABLE OPTIONS 10 of 10

AVAILABLE OPTIONS 1 of 5

AVAILABLE OPTIONS 2 of 5

AVAILABLE OPTIONS 3 of 5

AVAILABLE OPTIONS 4 of 5

AVAILABLE OPTIONS 5 of 5

AVAILABLE OPTIONS 1 of 16

AVAILABLE OPTIONS 2 of 16

AVAILABLE OPTIONS 3 of 16

AVAILABLE OPTIONS 4 of 16

AVAILABLE OPTIONS 5 of 16

AVAILABLE OPTIONS 6 of 16

AVAILABLE OPTIONS 7 of 16

AVAILABLE OPTIONS 8 of 16

AVAILABLE OPTIONS 9 of 16

AVAILABLE OPTIONS 10 of 16

AVAILABLE OPTIONS 11 of 16

AVAILABLE OPTIONS 12 of 16

AVAILABLE OPTIONS 13 of 16

AVAILABLE OPTIONS 14 of 16

AVAILABLE OPTIONS 15 of 16

AVAILABLE OPTIONS 16 of 16
