Kit for semi-insulating push & pull doors

All components

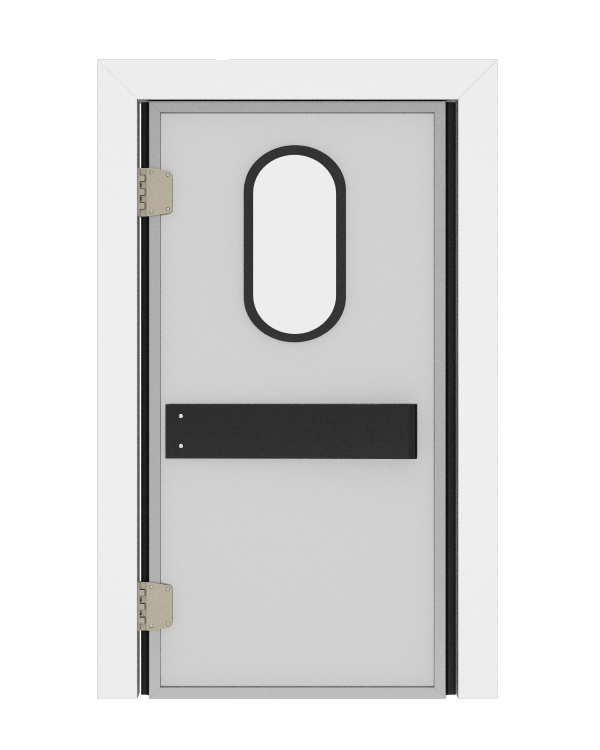

Kit_Porta Va e Vieni_Single Leaf_0000

DESCRIPTION

Kit for semi-insulating hinged doors with door leaf profile and aluminium frame with 1 or 2 leafs
CONTACT US

SUITABLE FOR

  • Type For push & pull doors
  • Door weight 60 kg
  • Cold room temperature Positive
  • Door height 500/3000 mm
  • Door width 500/1500 mm
  • Door thickness 40 mm

Components for the semi-insulating doors of cold rooms

Hinges6

Door leaf profiles3

Seals2

Frame profiles12

Bumbers and porthole7

Connection elements8

AVAILABLE OPTIONS 1 of 6

IC10101

Product number IC10101

Hinge for push & pull door with high base block

Additional features

  • Hinge made of composite material
  • 180° door opening angle
  • With 90° opening limit stop
  • Maximum door thickness 40 mm
  • Complete with fixing screws

    • AVAILABLE OPTIONS 2 of 6

    IC10104

    Product number IC10104

    Hinge for push & pull door with low base block

    Additional features

  • Hinge made of composite material
  • 180° door opening angle
  • With 90° opening limit stop
  • Maximum door thickness 40 mm
  • Complete with fixing screws

    • AVAILABLE OPTIONS 3 of 6

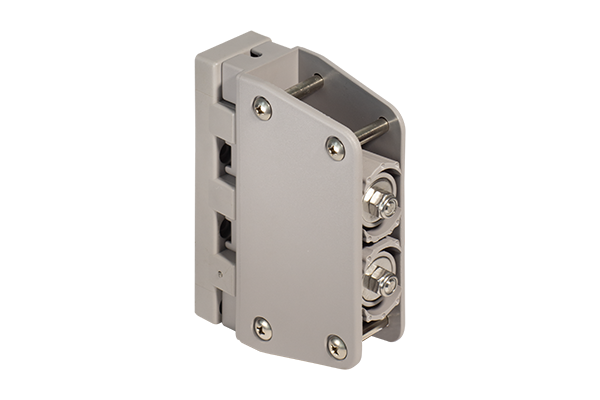

    IC10100

    Product number IC10100

    Hinge for push & pull door without high base block

    Additional features

  • Hinge made of composite material
  • 180° door opening angle
  • Without 90° opening limit stop
  • Maximum door thickness 40 mm
  • Complete with fixing screws

    • AVAILABLE OPTIONS 4 of 6

    IC10105

    Product number IC10105

    Hinge for push & pull door without low base block

    Additional features

  • Hinge made of composite material
  • 180° door opening angle
  • Without 90° opening limit stop
  • Maximum door thickness 40 mm
  • Complete with fixing screws

    • AVAILABLE OPTIONS 5 of 6

    IC10136

    Product number IC10136

    Single-spring hinge for push & pull door with block

    Additional features

  • For heavy-duty applications
  • Stainless steel fixing plate
  • Hinge made of composite material
  • 180° door opening angle
  • With 90° opening limit stop
  • Maximum door thickness 40 mm

    • AVAILABLE OPTIONS 6 of 6

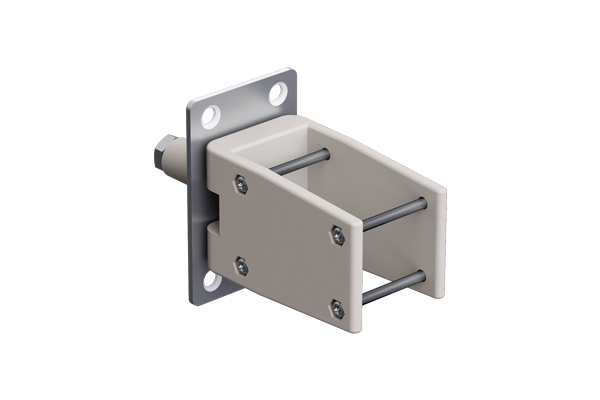

    IC10137

    Product number IC10137

    Single-spring hinge for push & pull door without block

    Additional features

  • For heavy-duty applications
  • Plastic fixing plate
  • Hinge made of composite material
  • 180° door opening angle
  • With 90° opening limit stop
  • Maximum door thickness 40 mm

    • AVAILABLE OPTIONS 1 of 3

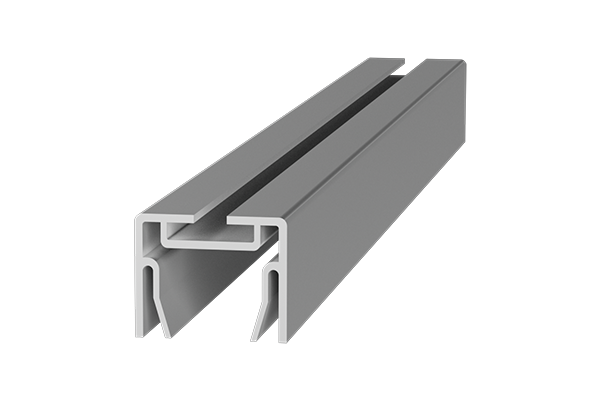

    IC10153

    Product number IC10153

    40 mm aluminium door leaf profile

    Additional features

  • Anodised aluminium (Alloy 6060)
  • For foam doors
  • Length of bars: 6 m

    • AVAILABLE OPTIONS 2 of 3

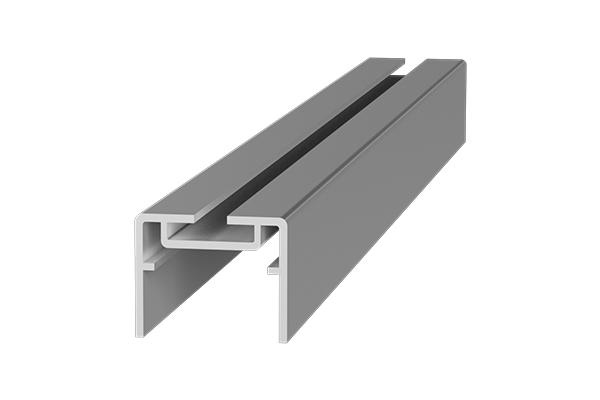

    IC10156

    Product number IC10156

    40 mm aluminium door leaf profile

    Additional features

  • Anodised aluminium (Alloy 6060)
  • For panel doors
  • Length of bars: 6 m

    • AVAILABLE OPTIONS 3 of 3

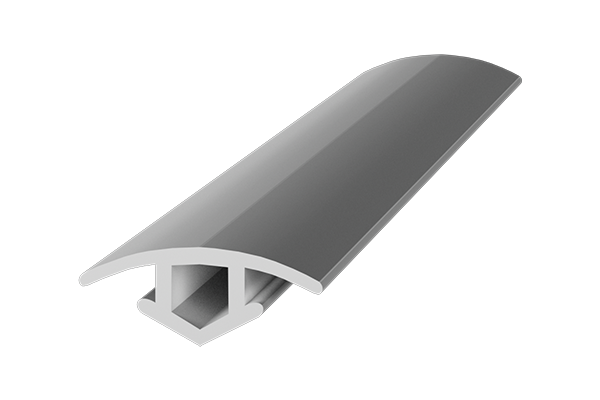

    IC10166

    Product number IC10166

    Rubber cap profile

    Additional features

  • Material: PVC
  • For application on IC10153 and IC10156 profiles

    • AVAILABLE OPTIONS 1 of 2

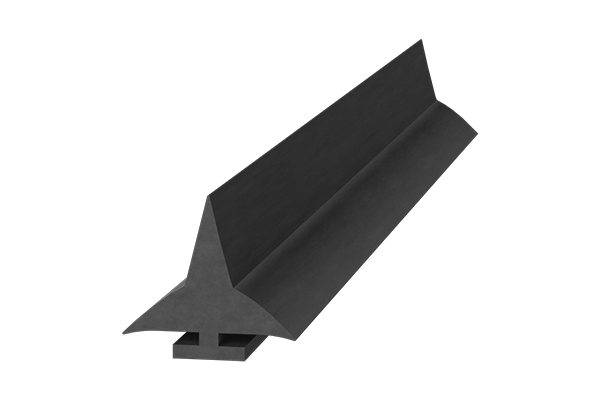

    IC10026

    Product number IC10026

    Low vertical seal

    Additional features

  • Height: 32 mm
  • EPDM
  • Length: 2500 mm
  • Seal to slide into the aluminium door leaf profile

    • AVAILABLE OPTIONS 2 of 2

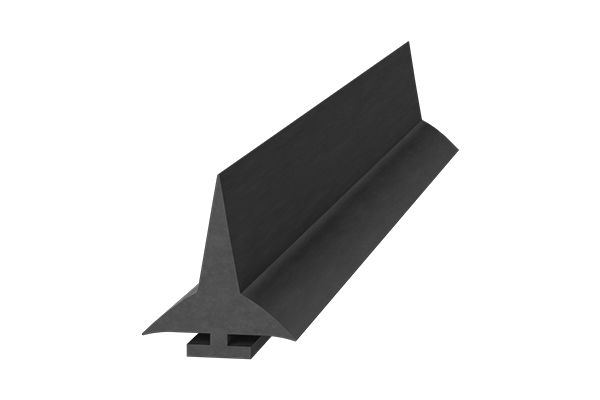

    IC10027

    Product number IC10027

    High vertical seal

    Additional features

  • Height: 40 mm
  • EPDM
  • Length: 2500 mm
  • Seal to slide into the aluminium door leaf profile

    • AVAILABLE OPTIONS 1 of 12

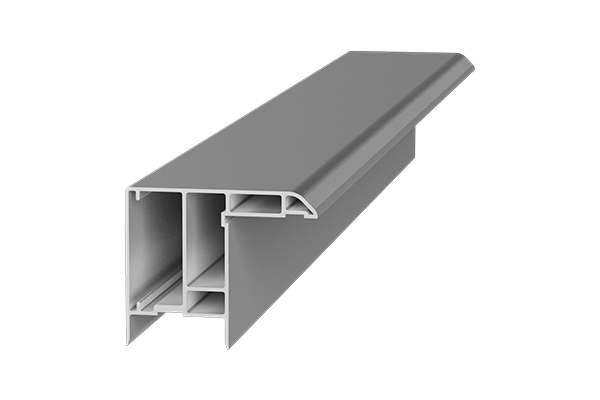

    IC10157

    Product number IC10157

    Anodised aluminium profile for frame

    Additional features

  • Thickness 60 mm
  • Anodised aluminium (Alloy 6060)
  • Length of bars: 6 m

    • AVAILABLE OPTIONS 2 of 12

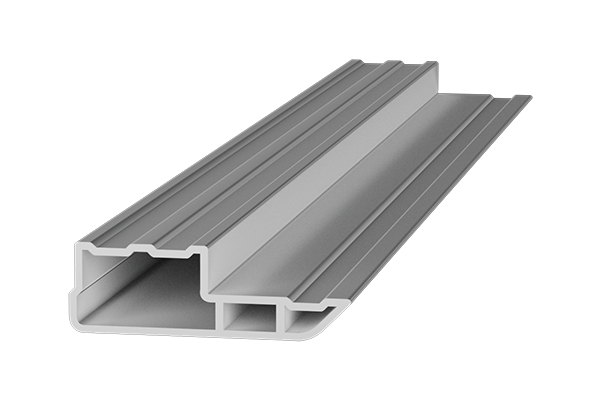

    IC10146

    Product number IC10146

    Aluminium profile for counter frame

    Additional features

  • Anodised aluminium (Alloy 6060)
  • Length of bars: 6 m

    • AVAILABLE OPTIONS 3 of 12

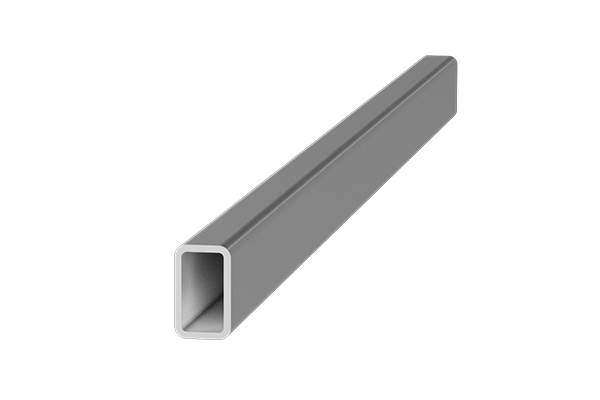

    IC10057

    Product number IC10057

    Spacer in anodised aluminium

    Additional features

  • Anodised aluminium (Alloy 6060)
  • Thickness 20 mm
  • Size: 40 x 20 x 2 mm
  • Length of bars: 6 m

    • AVAILABLE OPTIONS 4 of 12

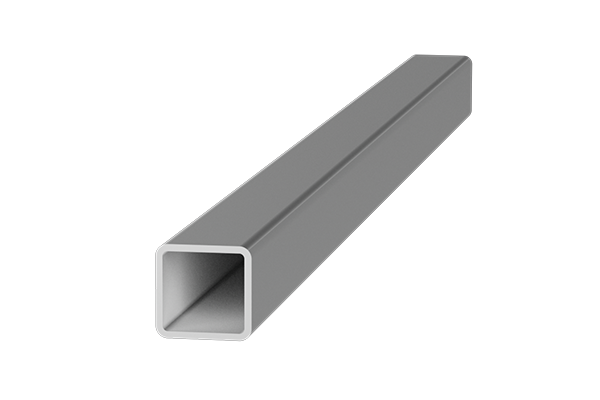

    IC10058

    Product number IC10058

    Spacer in anodised aluminium

    Additional features

  • Anodised aluminium (Alloy 6060)
  • Thickness 40 mm
  • Size: 40 x 40 x 2 mm
  • Length of bars: 6 m

    • AVAILABLE OPTIONS 5 of 12

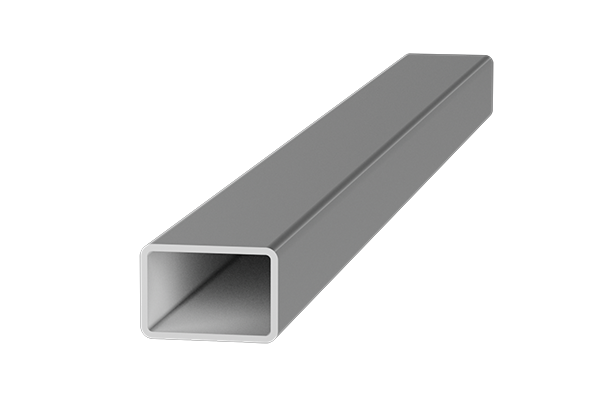

    IC10060

    Product number IC10060

    Spacer in anodised aluminium

    Additional features

  • Anodised aluminium (Alloy 6060)
  • Thickness 60 mm
  • Size: 40 x 60 x 2 mm
  • Length of bars: 6 m

    • AVAILABLE OPTIONS 6 of 12

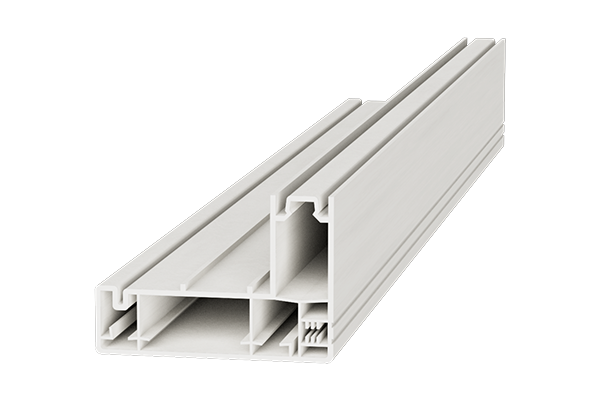

    IC10066

    Product number IC10066

    130 x 60 mm L-shaped PVC profile for frame

    Additional features

  • Material: PVC
  • Modular system suitable for installation on panels of different thicknesses
  • Profile section made for insertion of metal reinforcements suitable for mounting accessories
  • Length of bars: 5.8 m
  • Colour: RAL9010 standard, RAL9002 on request with minimum extrusion quantity

    • AVAILABLE OPTIONS 7 of 12

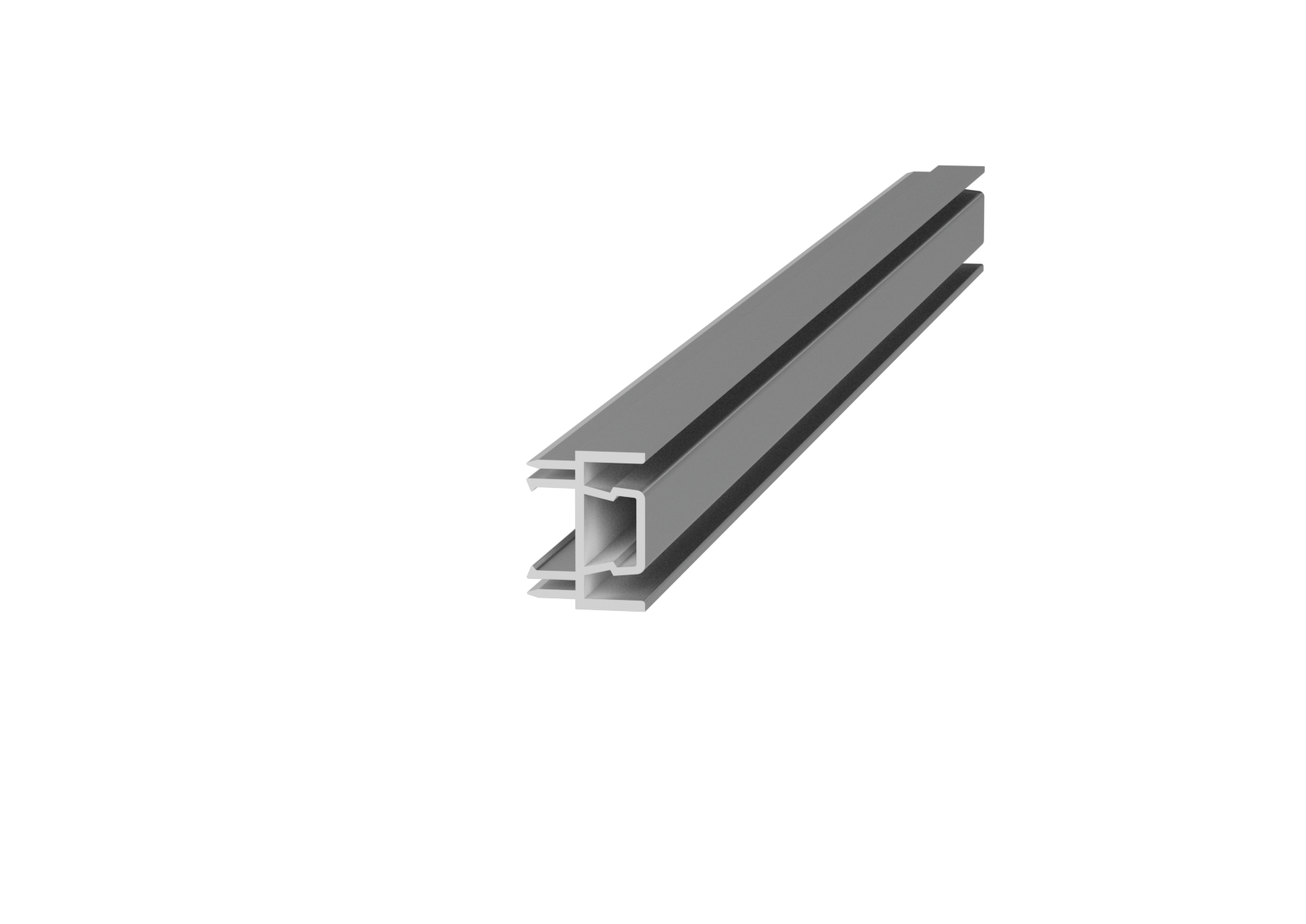

    IC10067

    Product number IC10067

    20 mm wide PVC rib for covering cold room panel

    Additional features

  • Material: PVC
  • Modular system suitable for installation on panels of different thicknesses
  • Length of bars: 5.8 m
  • Colour: RAL9010 standard, RAL9002 on request with minimum extrusion quantity

    • AVAILABLE OPTIONS 8 of 12

    IC10215

    Product number IC10215

    30 mm wide PVC rib for covering cold room panel

    Additional features

  • Material: PVC
  • Modular system suitable for installation on panels of different thicknesses
  • Length of bars: 5.8 m
  • Colour: RAL9010 standard, RAL9002 on request with minimum extrusion quantity

    • AVAILABLE OPTIONS 9 of 12

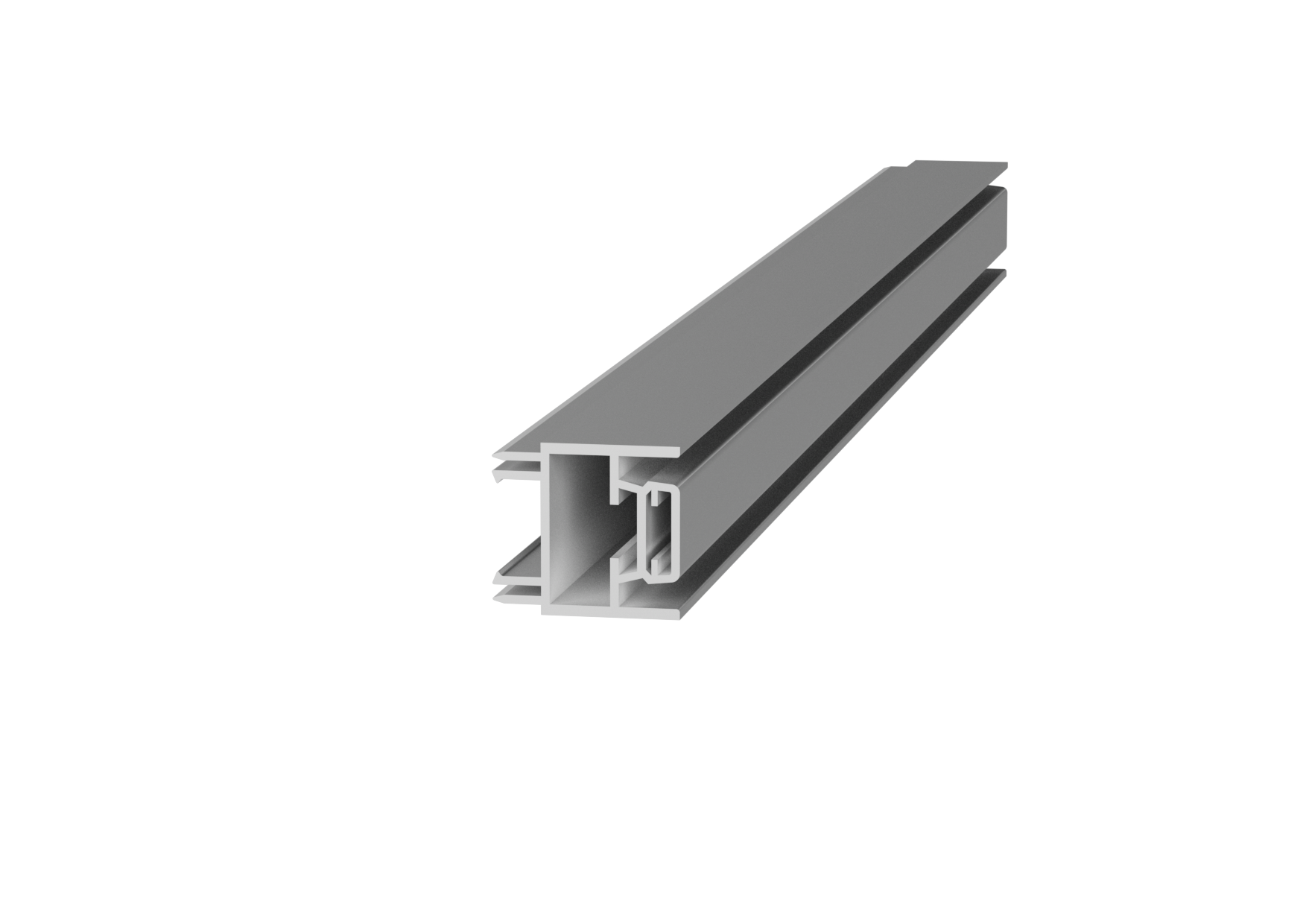

    IC10068

    Product number IC10068

    40 mm wide PVC rib for covering cold room panel

    Additional features

  • Material: PVC
  • Modular system suitable for installation on panels of different thicknesses
  • Length of bars: 5.8 m
  • Colour: RAL9010 standard, RAL9002 on request with minimum extrusion quantity

    • AVAILABLE OPTIONS 10 of 12

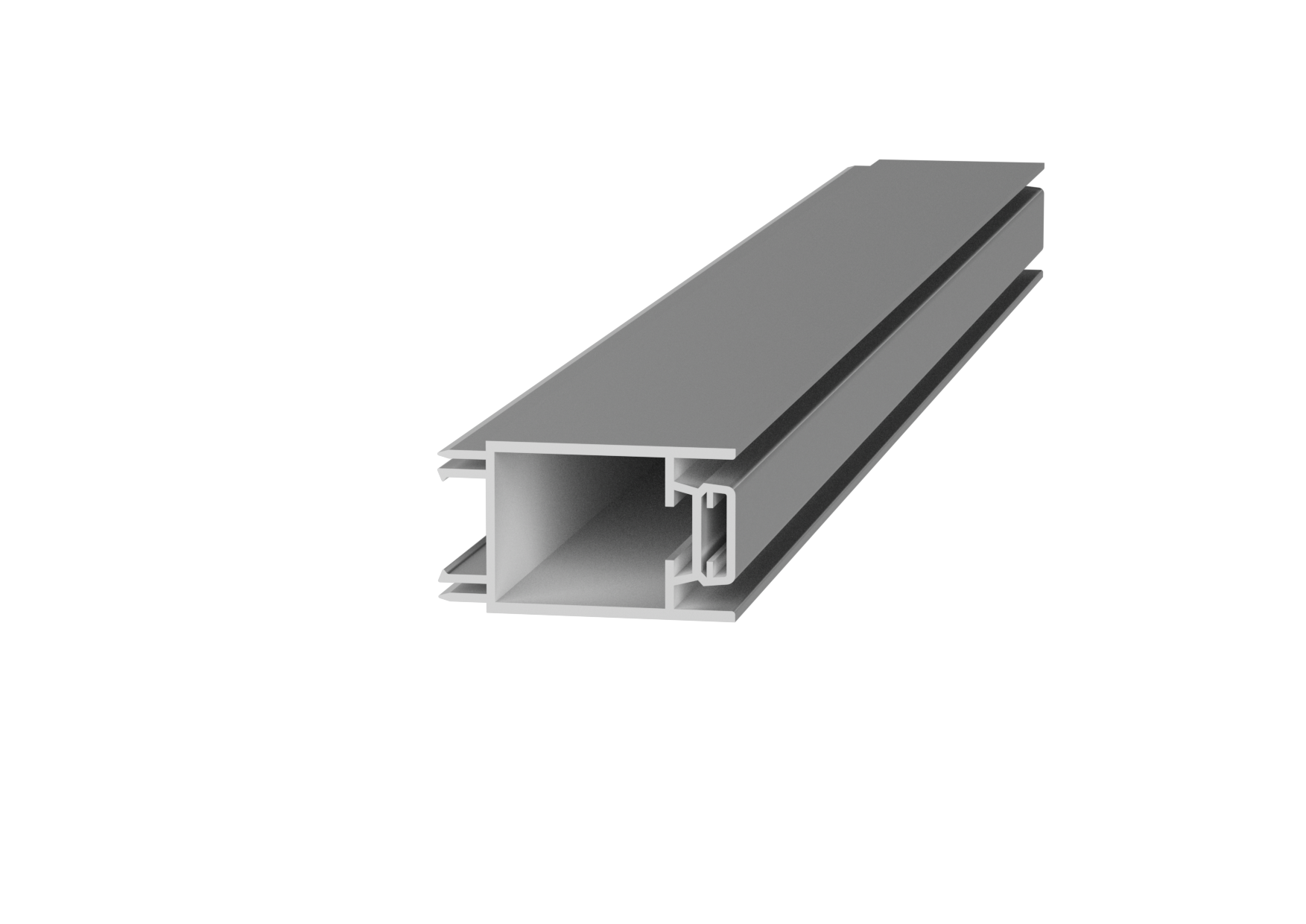

    IC10069

    Product number IC10069

    100 mm wide PVC rib for covering cold room panel

    Additional features

  • Material: PVC
  • Modular system suitable for installation on panels of different thicknesses
  • Length of bars: 5.8 m
  • Colour: RAL9010 standard, RAL9002 on request with minimum extrusion quantity

    • AVAILABLE OPTIONS 11 of 12

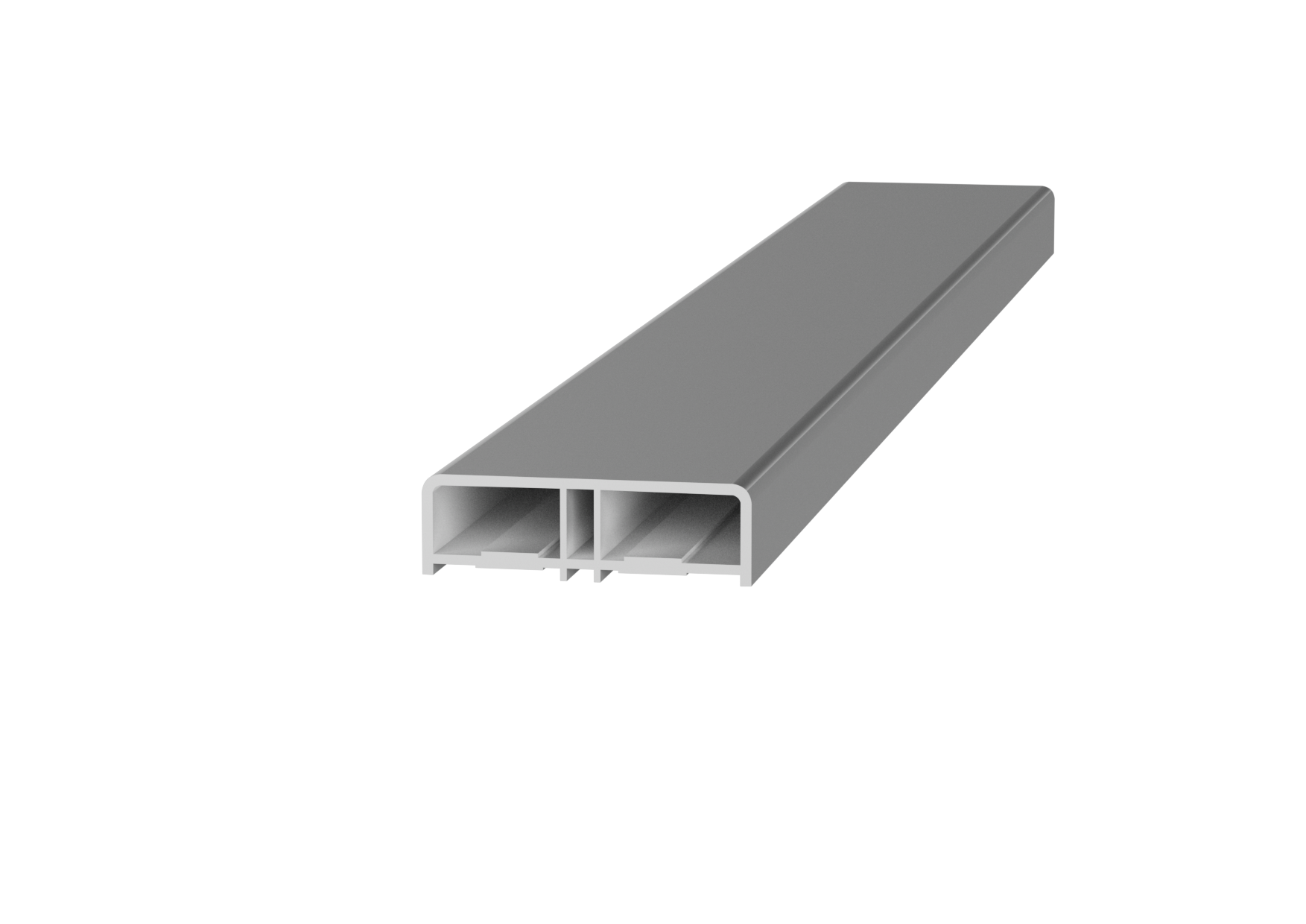

    IC10072

    Product number IC10072

    PVC profile for counter frame

    Additional features

  • Material: PVC
  • For use with PVC profile IC10169 to connect frame and counter frame
  • Length of bars: 5.8 m
  • Colour: RAL9010 standard, RAL9002 on request with minimum extrusion quantity

    • AVAILABLE OPTIONS 12 of 12

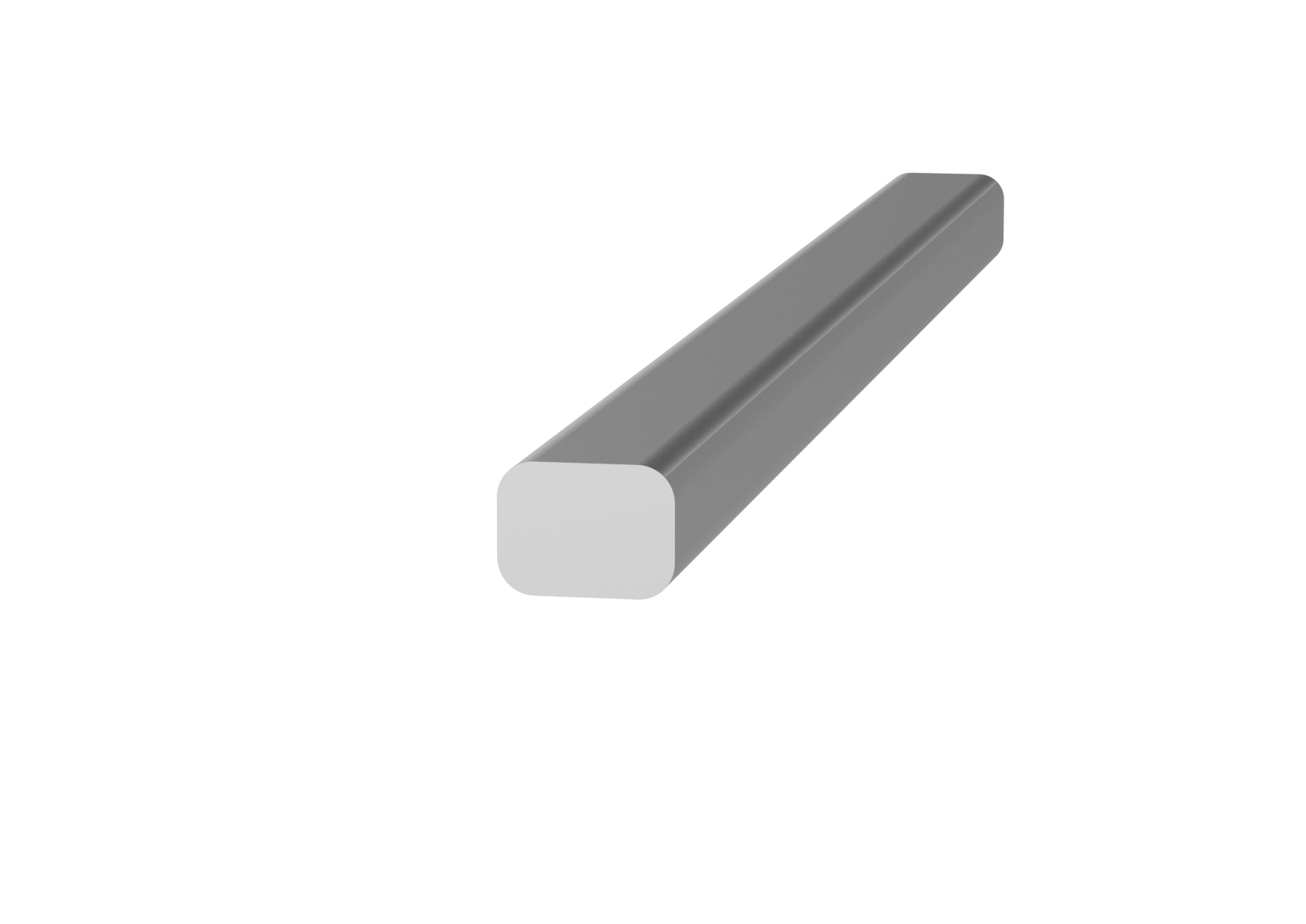

    IC10169

    Product number IC10169

    PVC profile to connect frame with counter frame

    Additional features

  • Material: PVC
  • Length of bars: 2.5 m
  • Colour: grey

    • AVAILABLE OPTIONS 1 of 7

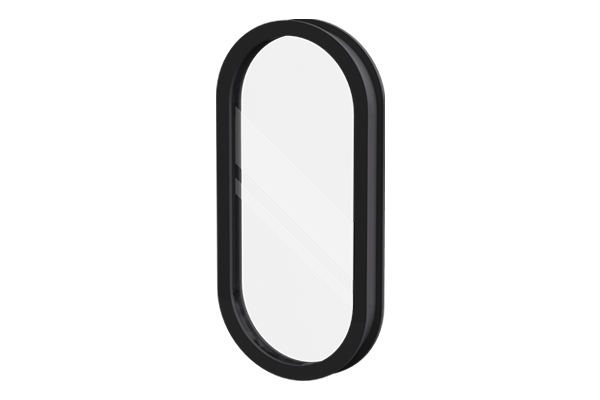

    IC10064

    Product number IC10064

    670 x 345 mm oval porthole

    Additional features

  • For panel thickness 40 mm
  • Leaf in PVC material
  • Plexiglas window

    • AVAILABLE OPTIONS 2 of 7

    IC10159

    Product number IC10159

    Black aircraft wing bumper

    Additional features

  • Black polyethylene material
  • Height: 150 mm
  • Span: 800 mm
  • Width: 700 mm + 100 mm

    • AVAILABLE OPTIONS 3 of 7

    IC10160

    Product number IC10160

    Black aircraft wing bumper

    Additional features

  • Black polyethylene material
  • Height: 150 mm
  • Span: 900 mm
  • Width: 800 mm + 100 mm

    • AVAILABLE OPTIONS 4 of 7

    IC10161

    Product number IC10161

    Black aircraft wing bumper

    Additional features

  • Black polyethylene material
  • Height: 150 mm
  • Span: 1000 mm
  • Width: 900 mm + 100 mm

    • AVAILABLE OPTIONS 5 of 7

    IC10158

    Product number IC10158

    Black aircraft wing bumper

    Additional features

  • Black polyethylene material
  • Height: 150 mm
  • Span: 1100 mm
  • Width: 1000 mm + 100 mm

    • AVAILABLE OPTIONS 6 of 7

    IC10162

    Product number IC10162

    Black aircraft wing bumper

    Additional features

  • Black polyethylene material
  • Height: 150 mm
  • Span: 1200 mm
  • Width: 1100 mm + 100 mm

    • AVAILABLE OPTIONS 7 of 7

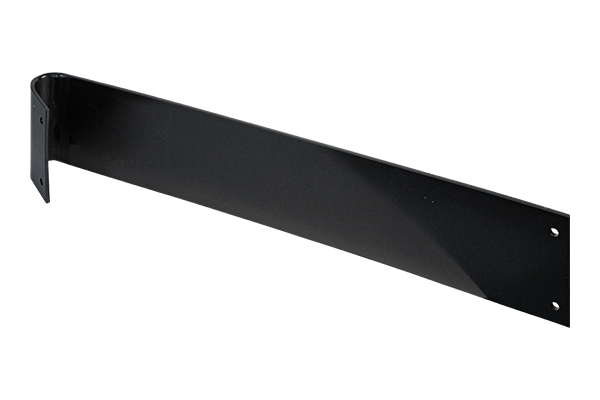

    IC10163

    Product number IC10163

    Black aircraft wing bumper

    Additional features

  • Black polyethylene material
  • Height: 150 mm
  • Span: 1300 mm
  • Width: 1200 mm + 100 mm

    • AVAILABLE OPTIONS 1 of 8

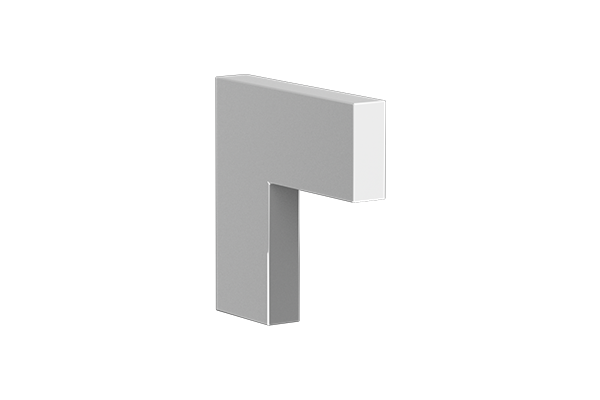

    IC10124

    Product number IC10124

    Square for assembly of counter frame

    Additional features

  • Plastic material

    • AVAILABLE OPTIONS 2 of 8

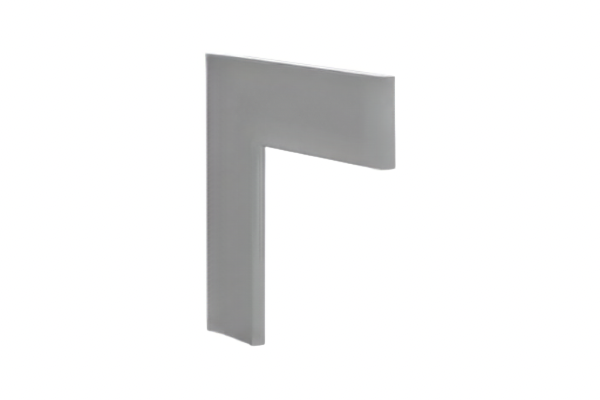

    Copia di IC10091

    Product number IC10091

    Connecting angle

    Additional features

  • Material: aluminium

    • AVAILABLE OPTIONS 3 of 8

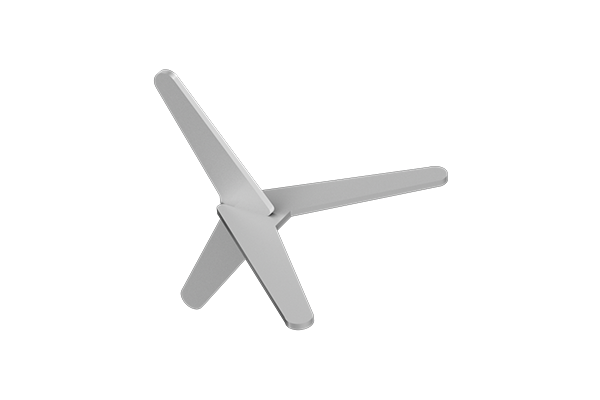

    IC10042

    Product number IC10042

    Plastic spacer for foam doors

    Additional features

  • h: 40 mm

    • AVAILABLE OPTIONS 4 of 8

    IC10094

    Product number IC10094

    23X14 square for assembly of frame

    Additional features

  • In aluminium

    • AVAILABLE OPTIONS 5 of 8

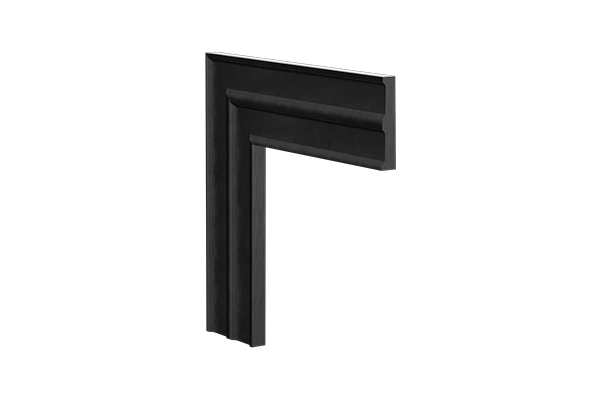

    IC10188

    Product number IC10188

    Large angle reinforcement

    Additional features

  • Reinforced plastic material

    • AVAILABLE OPTIONS 6 of 8

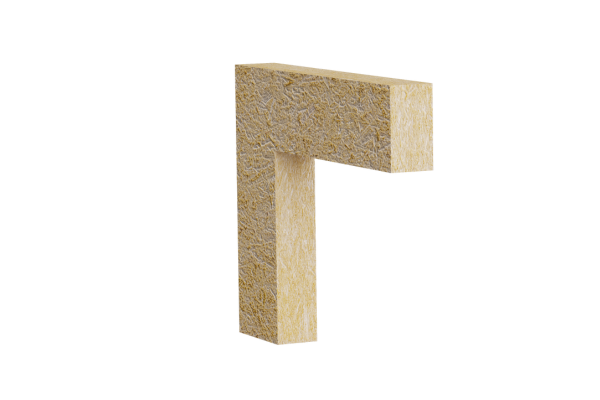

    IC10138

    Product number IC10138

    Angles for assembly of counter frame

    Additional features

  • Material: wood

    • AVAILABLE OPTIONS 7 of 8

    Product number IC10053

    Cap diameter: 22 mm

    Additional features

  • Cap in PVC
  • RAL 9010 white

    • AVAILABLE OPTIONS 8 of 8

    Product number IC10063

    Cap diameter: 11.5 mm

    Additional features

  • Cap in PVC
  • RAL 9010 white
