Kit for semi-insulating service doors

All components

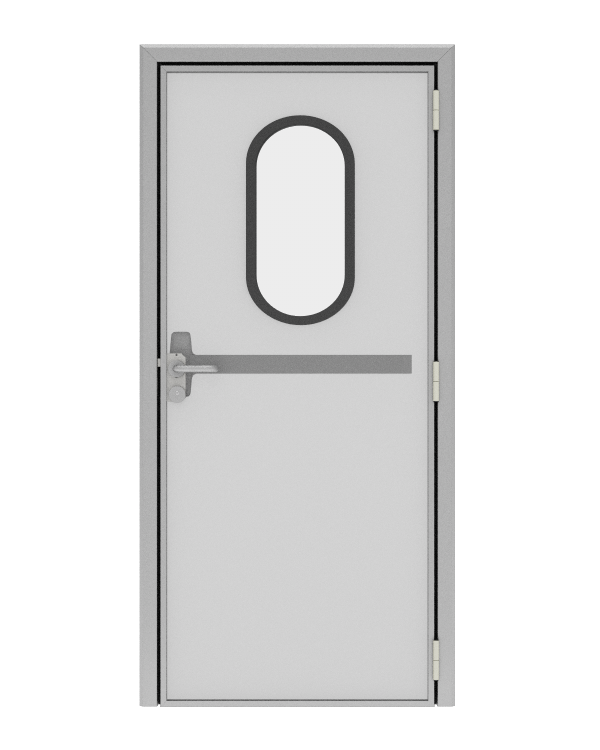

Kit_Porte Ufficio_0000

DESCRIPTION

Kit for semi-insulating hinged doors with door leaf profile and aluminium frame with 1 or 2 leafs
CONTACT US

SUITABLE FOR

  • Type For office type doors
  • Door weight 60 kg
  • Cold room temperature Positive
  • Door height 500/3000 mm
  • Door width 500/1500 mm
  • Door thickness 40 mm
  • Opening direction RH, LH
  • Fastener with key Yes, No

Components for the semi-insulating doors of cold rooms

Handles4

Hinges2

Door leaf profiles4

Seals2

Frame Profiles5

Porthole1

Connection Elements7

AVAILABLE OPTIONS 1 of 4

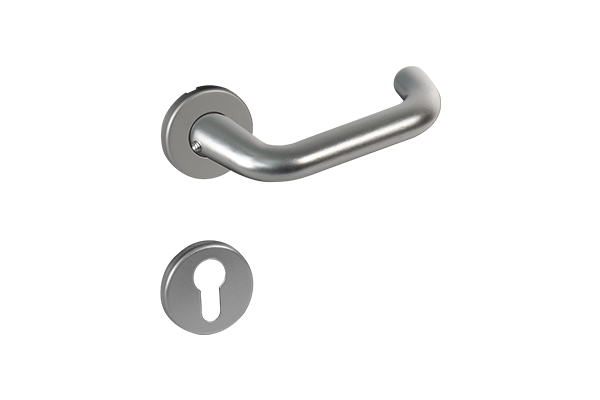

IC10093

Product number IC10093

Office handle in anodised aluminium

Additional features

  • Silver anodised aluminium
  • Rosette and nozzle
  • With key
  • Reversible RH/LH

    • AVAILABLE OPTIONS 2 of 4

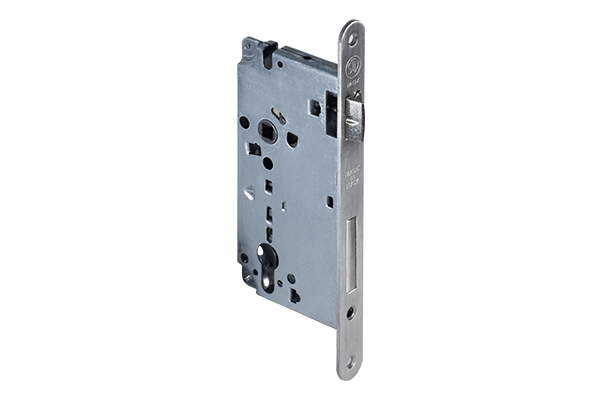

    IC10092

    Product number IC10092

    Lock for office type handle

    Additional features

  • 60 mm entry security lock
  • Stainless steel faceplate
  • Brass chain
  • For cylinder
  • Reversible RH/LH

    • AVAILABLE OPTIONS 3 of 4

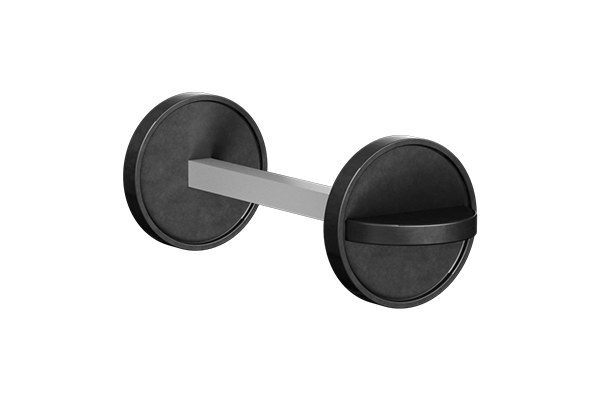

    IC10095

    Product number IC10095

    Vacant/Occupied indicator

    Additional features

  • Free/occupied lock, 60 mm entry, 90 mm wheelbase, round edges, polished nickel-plated steel
  • Stainless steel faceplate
  • Brass chain
  • Reversible RH/LH

    • AVAILABLE OPTIONS 4 of 4

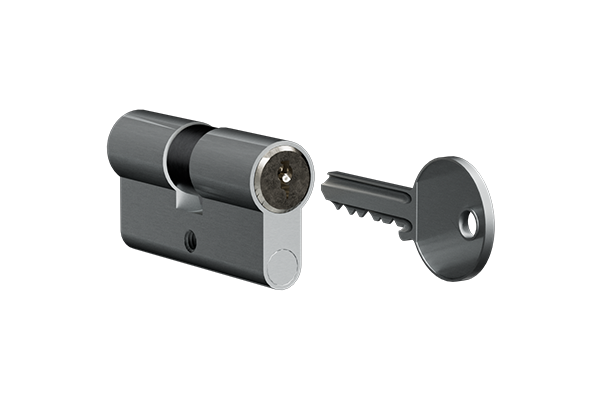

    IC10096

    Product number IC10096

    Lock cylinder

    Additional features

  • Nickel-plated brass cylinder
  • 22/10/28mm

    • AVAILABLE OPTIONS 1 of 2

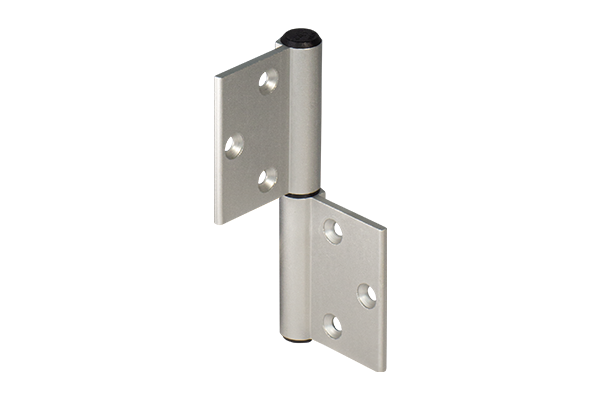

    IC10022

    Product number IC10022

    Right-hand opening office type door hinge

    Additional features

  • Material: aluminium

    • AVAILABLE OPTIONS 2 of 2

    IC10023

    Product number IC10023

    Left-hand opening office type door hinge

    Additional features

  • Material: aluminium

    • AVAILABLE OPTIONS 1 of 4

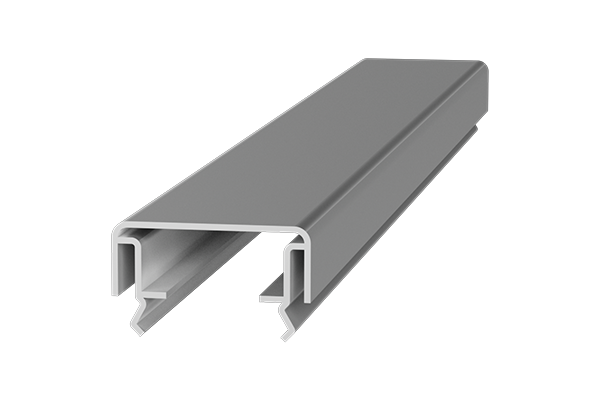

    IC10147

    Product number IC10147

    40 mm aluminium door leaf profile

    Additional features

  • For foam doors
  • Anodised aluminium (Alloy 6060)
  • Length of bars: 6 m

    • AVAILABLE OPTIONS 2 of 4

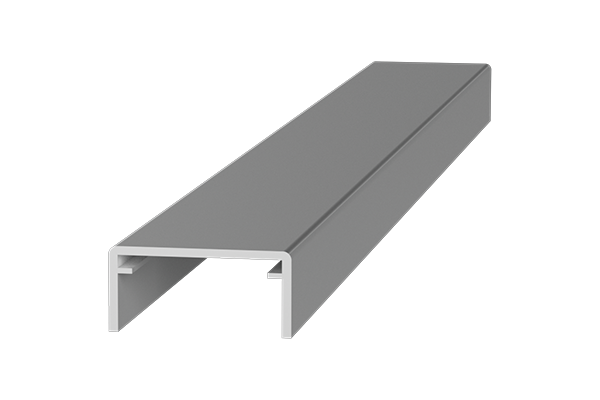

    IC10155

    Product number IC10155

    40 mm aluminium door leaf profile

    Additional features

  • For panel doors
  • Anodised aluminium (Alloy 6060)
  • Length of bars: 6 m

    • AVAILABLE OPTIONS 3 of 4

    Product number IC10061

    40 mm aluminium door leaf profile for two-leaf door

    Additional features

  • Length of bars: 6 m
  • For foam doors
  • For opening leaf

    • AVAILABLE OPTIONS 4 of 4

    Product number IC10062

    40 mm aluminium door leaf profile for two-leaf door

    Additional features

  • Length of bars: 6 m
  • For foam doors
  • For semi-fixed door

    • AVAILABLE OPTIONS 1 of 2

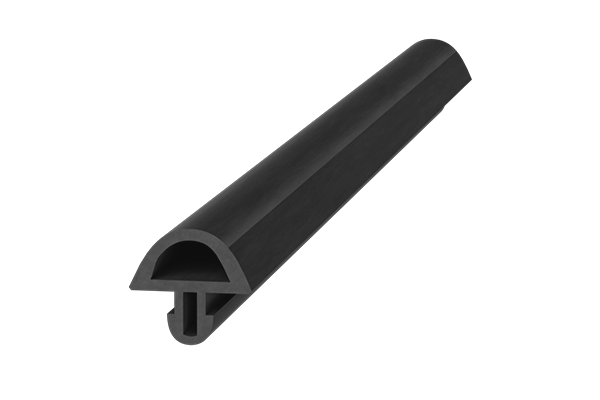

    Copia di IC10165

    Product number IC10165

    Seal for office type doors

    Additional features

  • EPDM
  • Roll length: 50 m
  • Seal to slide into the aluminium frame

    • AVAILABLE OPTIONS 2 of 2

    IC10025

    Product number IC10025

    Seal for office type two-leaf doors

    Additional features

  • EPDM
  • Seal to slide into the aluminium frame

    • AVAILABLE OPTIONS 1 of 5

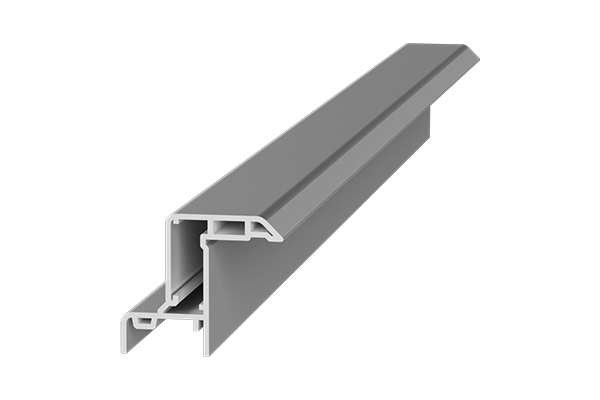

    IC10145

    Product number IC10145

    Aluminium profile for frame

    Additional features

  • Anodised aluminium (Alloy 6060)
  • Thickness 60 mm
  • Length of bars: 6 m

    • AVAILABLE OPTIONS 2 of 5

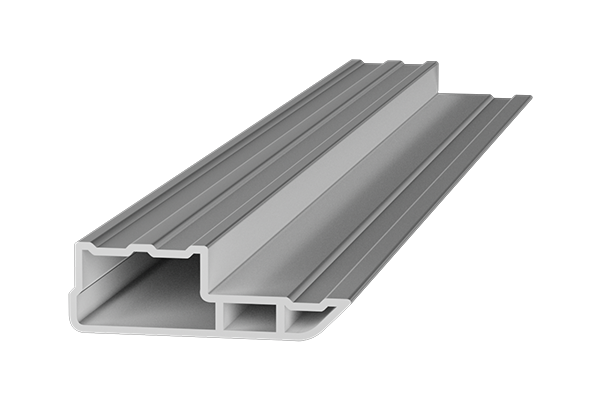

    IC10146

    Product number IC10146

    Aluminium profile for counter frame

    Additional features

  • Anodised aluminium (Alloy 6060)
  • Length of bars: 6 m

    • AVAILABLE OPTIONS 3 of 5

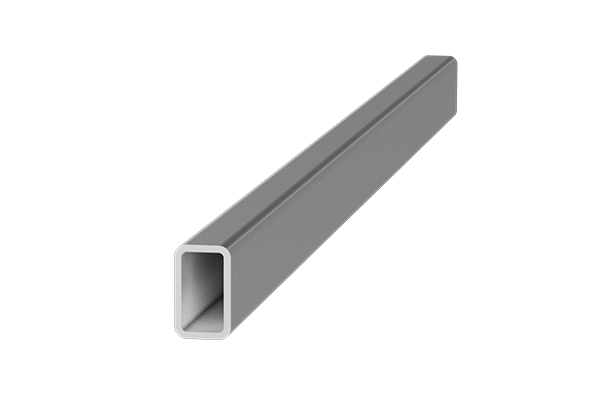

    IC10057

    Product number IC10057

    Spacer in anodised aluminium

    Additional features

  • Anodised aluminium (Alloy 6060)
  • Thickness 20 mm
  • Size: 40 x 20 x 2 mm
  • Length of bars: 6 m

    • AVAILABLE OPTIONS 4 of 5

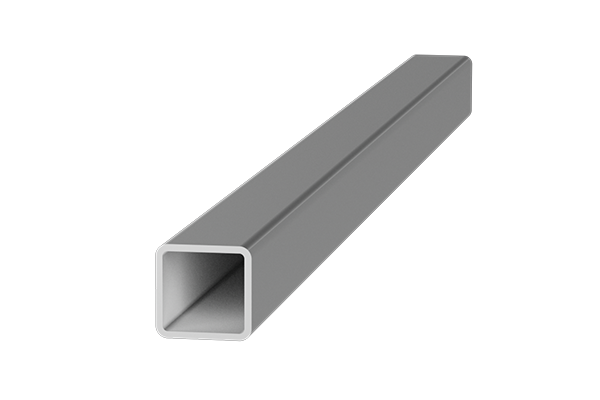

    IC10058

    Product number IC10058

    Spacer in anodised aluminium

    Additional features

  • Anodised aluminium (Alloy 6060)
  • Thickness 40 mm
  • Size: 40 x 40 x 2 mm
  • Length of bars: 6 m

    • AVAILABLE OPTIONS 5 of 5

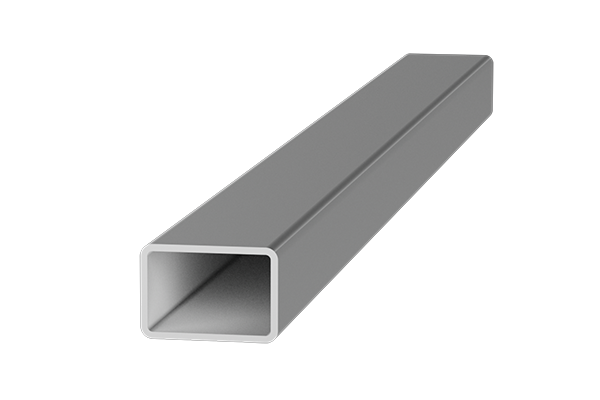

    IC10060

    Product number IC10060

    Spacer in anodised aluminium

    Additional features

  • Anodised aluminium (Alloy 6060)
  • Thickness 60 mm
  • Size: 40 x 60 x 2 mm
  • Length of bars: 6 m

    • AVAILABLE OPTIONS 1 of 1

    IC10064

    Product number IC10064

    Connecting angle

    Additional features

  • For panel thickness 40 mm
  • Leaf in PVC material
  • Plexiglas window

    • AVAILABLE OPTIONS 1 of 7

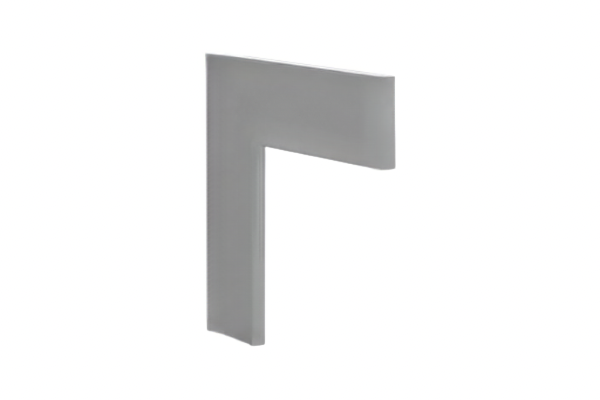

    Copia di IC10091

    Product number IC10091

    Connecting angle

    Additional features

  • Material: aluminium

    • AVAILABLE OPTIONS 2 of 7

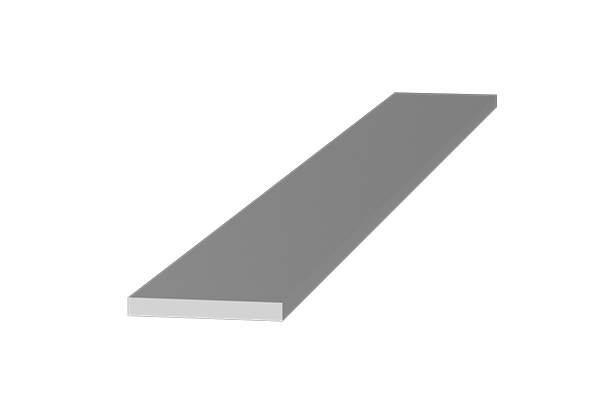

    IC10065

    Product number IC10065

    Assembly reinforcement

    Additional features

  • Material: galvanised iron

    • AVAILABLE OPTIONS 3 of 7

    Product number IC10042

    Plastic spacer for foam doors

    Additional features

  • h: 40 mm

    • AVAILABLE OPTIONS 4 of 7

    IC10094

    Product number IC10094

    23X14 square for assembly of frame

    Additional features

  • In aluminium

    • AVAILABLE OPTIONS 5 of 7

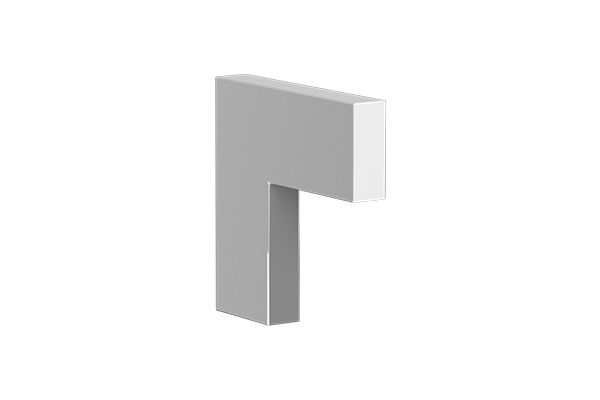

    IC10124

    Product number IC10124

    Square for assembly of counter frame

    Additional features

  • Plastic material

    • AVAILABLE OPTIONS 6 of 7

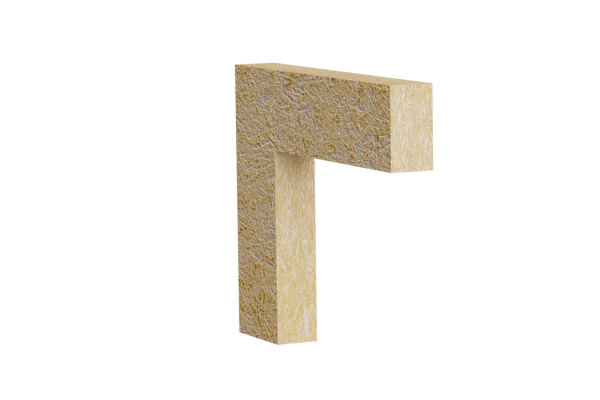

    IC10139

    Product number IC10139

    Square for assembly of counter frame

    Additional features

  • Material: wood

    • AVAILABLE OPTIONS 7 of 7

    Product number IC10063

    Cap diameter: 11.5 mm

    Additional features

  • Cap in PVC
  • RAL 9010 white
